Product Description

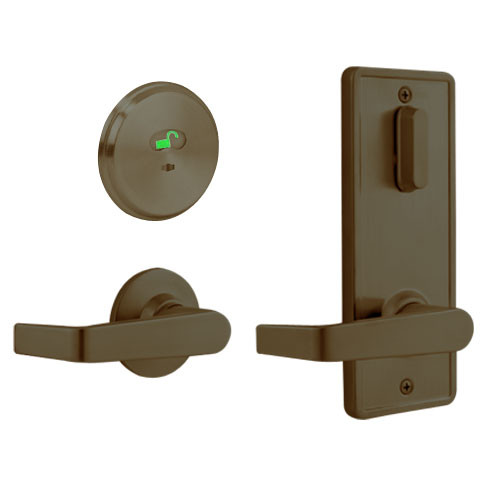

QCI285E613NR8FLS2 Stanley QCI200 Series Standard Duty Interconnected Indicator Locking with Sierra Lever in Oil Rubbed Bronze Finish
The Stanley QCI285E613NR8FLS2 commercial hardware series provides a better solution for multi-family, assisted living, commercial & mixed-use applications where single motion egress is required. These levers deliver premium performance and are designed to withstand the physical abuses of the applied environment. The STANLEY Commercial Hardware QCI200 series builds on STANLEYs proven quality and reliability while providing a solid value lever lock for light commercial applications. This Series standard duty interconnected locks has been Certified to ANSI/BHMA A156.12 1999 Grade 2.
Indicator (Passage Lever): Latch bolt operated by lever from either side. Rotating turn from inside extends deadbolt to locked position. Both deadbolt and latch bolt are retracted simultaneously to unlock position by operating inside lever. Outside indicator visually shows red closed padlock for locked/in-use, green open door padlock for unlocked/vacant. Emergency key included.
Features and Benefits:
- Oil Rubbed Bronze finish
- Handing: Non handed
- Lever: E - Sierra lever
- Indicator (Passage Lever)
- Standard duty Interconnected locks
- Lever latch: Narrow Radius 2-3/8; Deadbolt Latch: Narrow Radius 2-3/4
- Latch bolt - Keyed 1/2" (13mm) steel throw with auxiliary latch, passage 1/2" (13mm) spring latch.
- Strike - Lever-latch: Full Lip Square Corner Strike, Deadbolt Latch: Full Lip Square Corner Strike
- Door Range: 1-3/8" - 1-3/4" (35mm-51mm) standard
- Backset: 2-3/4" (70 mm) standard
- Latch hole - 1" diameter edge bore
- Tested to meet Grade 2 specification of 400,000 cycles.
- Standard door prep: 2 1/8" cross bore (54mm)
- Rose diameter 2 1/2" (63mm)
- Heavy-duty torsion springs provide longer performance life and prevent lever sag.
