Product Description
QCL170E619S4478SLC Stanley QCL100 Series Less Cylinder Storeroom Lock with Sierra Lever in Satin Nickel Finish
The Stanley QCL170E619S4478SLC commercial hardware series provides a better solution for high traffic and heavy abuse commercial applications. This series is designed for quick installation, easy retrofit, longer performance life, and vandal resistance, the QCL 100 series provides a better initial value and significant long-term savings. The intention of designed QCL100 is to simplify extra heavy duty solutions. With a range of configuration options, a compatible door prep, and bolt pattern, and simplified packaging, a QCL100 series lock makes your work easier. This Series cylindrical lock has been Certified to ANSI/BHMA A156.2 Series Grade 1.

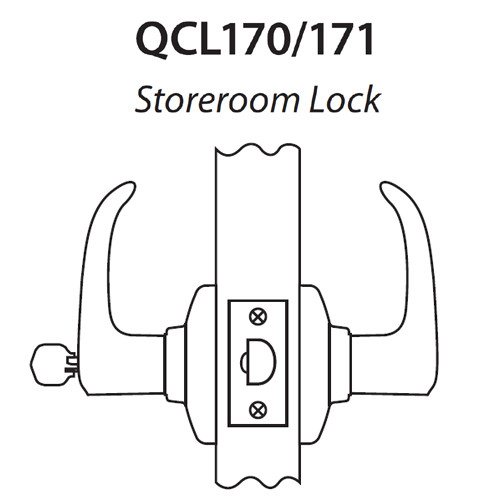

Storeroom Lock: Outside lever always locked. Entrance by key only. Inside lever unlocked and free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.
Features and Benefits:
- Satin Nickel finish
- Handing: Non handed
- Lever: E - sierra lever
- Storeroom lock
- Extra heavy duty cylindrical locks
- Cylinder is not included
- Latch: Square 2-3/4
- Strike: ANSI 4-7/8" x 1-1/4" strike
- Door Thickness: 1-3/8" - 2" (35mm - 51mm) standard
- Backset: 2-3/4" (70mm) square standard
- Door prep: 2-1/8" (54mm) diameter cross bore
- Designed for security: With features like thru bolt design, clutching mechanisms, and fire-rated latches.
- Simple to install: Compartmentalized packaging makes QCL100 locks easier to install.
