Product Description

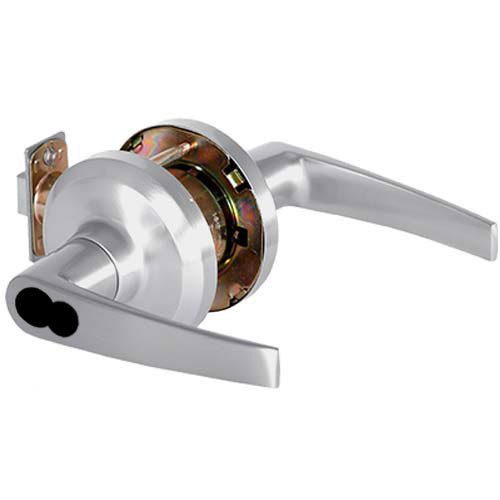

QCL171A626R8478SBF Stanley QCL100 Series Ansi Strike Best F Keyway Storeroom Lock with Slate Lever Prepped for SFIC in Satin Chrome Finish
The Stanley QCL171A626R8478SBF commercial hardware series provides a better solution for high traffic and heavy abuse commercial applications. This series is designed for quick installation, easy retrofit, longer performance life, and vandal resistance, the QCL 100 series provides a better initial value and significant long-term savings. The intention of designed QCL100 is to simplify extra heavy duty solutions. With a range of configuration options, a compatible door prep, and bolt pattern, and simplified packaging, a QCL100 series lock makes your work easier. This Series cylindrical lock has been Certified to ANSI/BHMA A156.2 Series Grade 1.
Classroom Lock: Key required to either lock or unlock outside lever.
Features and Benefits:
- Satin Chrome finish
- Handing: Non handed
- Lever: A - Slate lever
- Keyway: Best "F" keyway
- Classroom lock
- Extra heavy duty cylindrical locks
- Core is included
- Prepped with small format interchangeable core
- Latch: Radius 2-3/8
- Strike: ANSI 4-7/8" x 1-1/4" strike
- Door Thickness: 1-3/8" - 2" (35mm - 51mm) standard
- Backset: 2-3/4" (70mm) square standard
- Door prep: 2-1/8" (54mm) diameter cross bore
- Designed for security: With features like thru bolt design, clutching mechanisms, and fire-rated latches.
- Simple to install: Compartmentalized packaging makes QCL100 locks easier to install.
