Product Description

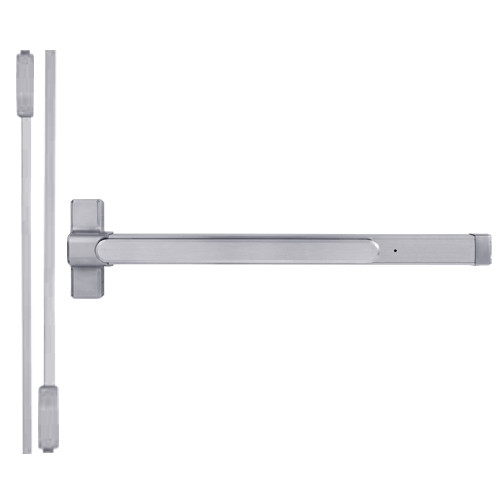

QED114ED-36-7-626 Stanley QED100 Series Heavy Duty Surface Vertical Rod Hex Dog Exit Device in Satin Chrome Finish

The Stanley QED114ED-36-7-626 commercial hardware heavy-duty exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED100 in more applications. It has features like thru-bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose. This is compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution. This Series heavy duty exit devices has been Certified to ANSI/BHMA A156.3 Series - Grade 1

Electrified Dogging: Electrified Dogging (ED) allows continuous latch retraction and dogging simultaneously. ED requires first time mechanical activation after which the push bar will continuously hold the push bar and latch retracted. When power is removed or interrupted from the device, the latch bolt will extend and push bar will release.

Features and Benefits:

• Satin Chrome finish
• Handing: Non handed
• Device Type: SVR (Surface Vertical Rod) exit device
• Door height: 7' standard with 84" rods
• Device Length: 36"
• Electric Options: Electrified dogging
• Dogging: Hex key dogging
• Trim is not included
• Non fire rated
• Latch bolt: Stainless steel 1/2" throw (12.7mm).
• Fasteners: wood screws, machine screws, and sex bolts standard
• Door Thickness: 1-3/4" standard (44.5mm)
• Consistent styling allows for harmonization with other STANLEY Commercial Hardware products.
• Standard Backset: 2 7/8" (62mm) to face of doorstop.
• Thru-bolted trim design for increased security and durability
