Product Description

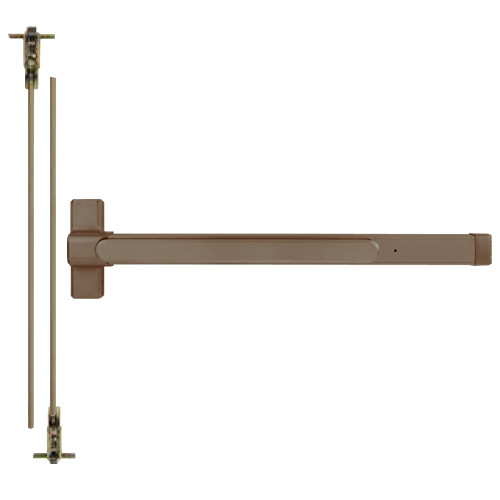

QED125X-36-7-313AN-LC Stanley QED100 Series Heavy Duty Concealed Vertical Rod Cylinder Dog Exit Device in Anodized Duranodic Bronze Finish

The Stanley QED125X-36-7-313AN-LC commercial hardware heavy-duty exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED100 in more applications. It has features like thru-bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose. This is compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution. This Series heavy duty exit devices has been Certified to ANSI/BHMA A156.3 Series - Grade 1

Request to Exit (X): Request to Exit (X) is an SPDT (Single Pole Double Throw) switch which monitors the push bar of the exit device. The X switch can be used to activate a door alarm, control a magnetic locking device, shunt a door alarm or signal a control console when the push bar is depressed.

Features and Benefits:

• Anodized Duranodic Bronze finish
• Handing: Non handed
• Cylinder is not included
• Device Type: CVR (Concealed Vertical Rod) exit device
• Door height: 7' standard with 84" rods
• Device Length: 36"
• Options: Request to Exit
• Dogging: Cylinder dogging
• Trim is not included
• Non fire rated
• Latch bolt: Stainless steel 1/2" throw (12.7mm).
• Fasteners: wood screws, machine screws, and sex bolts standard
• Door Thickness: 1-3/4" standard (44.5mm)
• Consistent styling allows for harmonization with other STANLEY Commercial Hardware products.
• Standard Backset: 2 7/8" (62mm) to face of doorstop.
• Thru-bolted trim design for increased security and durability
