Product Description

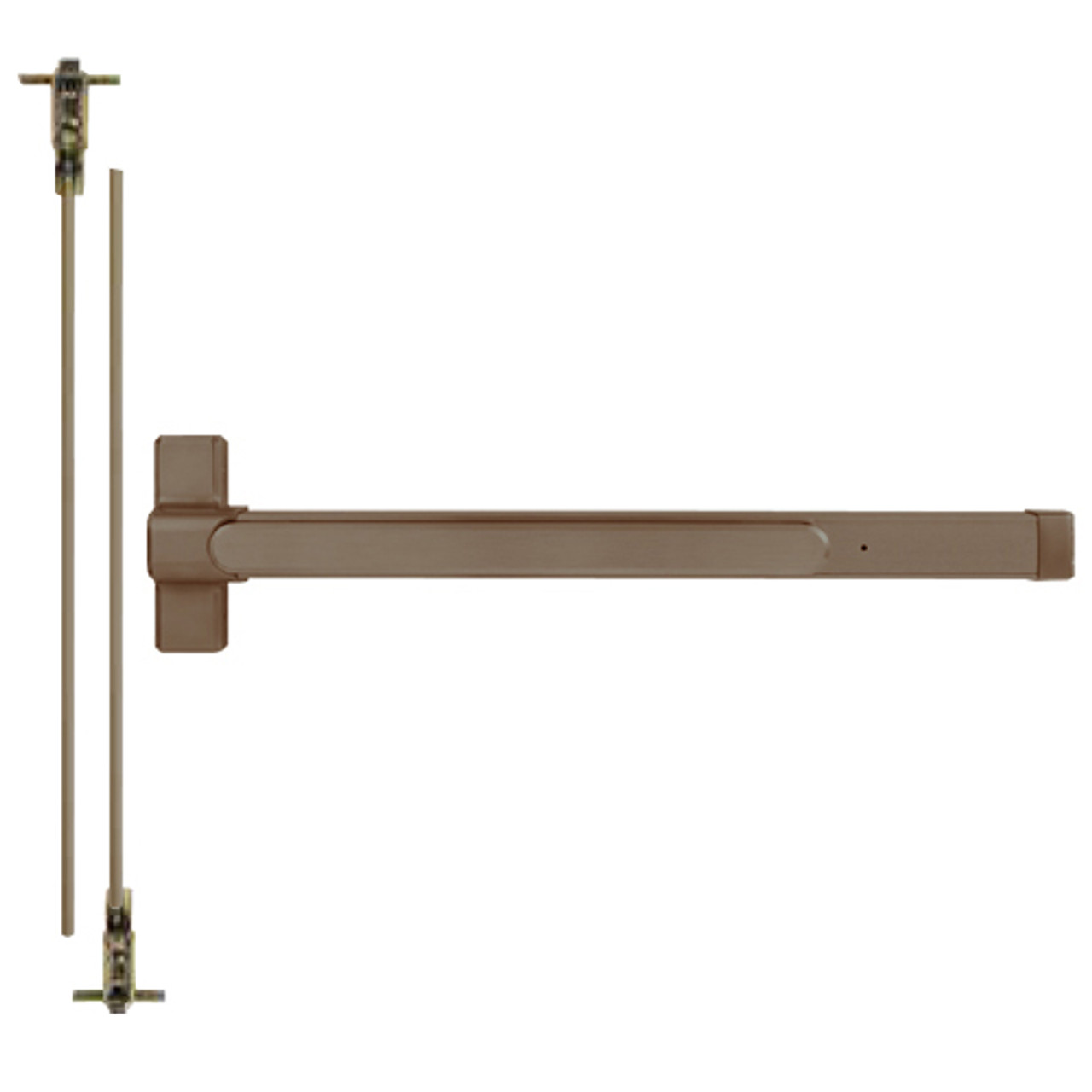

QED126LRX-48-7-313AN Stanley QED100 Series Heavy Duty Concealed Vertical Rod Fire Rated Exit Device in Anodized Duranodic Bronze Finish
The Stanley QED126LRX-48-7-313AN commercial hardware heavy-duty exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED100 in more applications. It has features like thru-bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose. This is compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution. This Series heavy duty exit devices has been Certified to ANSI/BHMA A156.3 Series - Grade 1
Electrified Latch Retraction with Request to Exit: Electrified Latch Retraction (LR) device with a Request to Exit (X) switch.
Features and Benefits:
- Anodized Duranodic Bronze finish
- Handing: Non handed
- Device Type: CVR (Concealed Vertical Rod) exit device
- Door height: 7' standard with 84" rods
- Device Length: 48"
- Electric Options: Electrified Latch Retraction with Request to Exit
- Trim is not included
- Fire rated
- Latch bolt: Stainless steel 1/2" throw (12.7mm).
- Fasteners: wood screws, machine screws, and sex bolts standard
- Door Thickness: 1-3/4" standard (44.5mm)
- Consistent styling allows for harmonization with other STANLEY Commercial Hardware products.
- Standard Backset: 2 7/8" (62mm) to face of doorstop.
- Thru-bolted trim design for increased security and durability
