Product Description

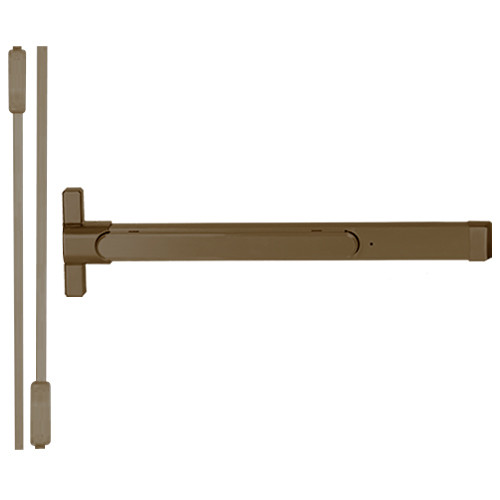

QED216-36-7-313AN Stanley QED200 Series Heavy Duty Narrow Stile Surface Vertical Rod Fire Rated Exit Device in Anodized Duranodic Bronze Finish

The Stanley QED216-36-7-313AN commercial hardware heavy-duty exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED200 in more applications. It has features like thru-bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose. This is compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution. This Series heavy duty exit devices has been Certified to ANSI/BHMA A156.3 Series - Grade 1

Features and Benefits:

• Anodized Duranodic Bronze finish
• Handing: Non handed
• Device Type: SVR (Surface Vertical Rod) exit device
• Door height: 7' standard with 84" rods
• Device Length: 36"
• Trim is not included
• Fire rated
• Latch bolt: Stainless steel 1/2" throw (12.7mm).
• Fasteners: wood screws, machine screws, and sex bolts standard
• Door Thickness: 1-3/4" standard (44.5mm)
• Consistent styling allows for harmonization with other STANLEY Commercial Hardware products.
• Stile width: 2" minimum (50.8 mm) for ALS strike
• Thru-bolted trim design for increased security and durability
