Product Description

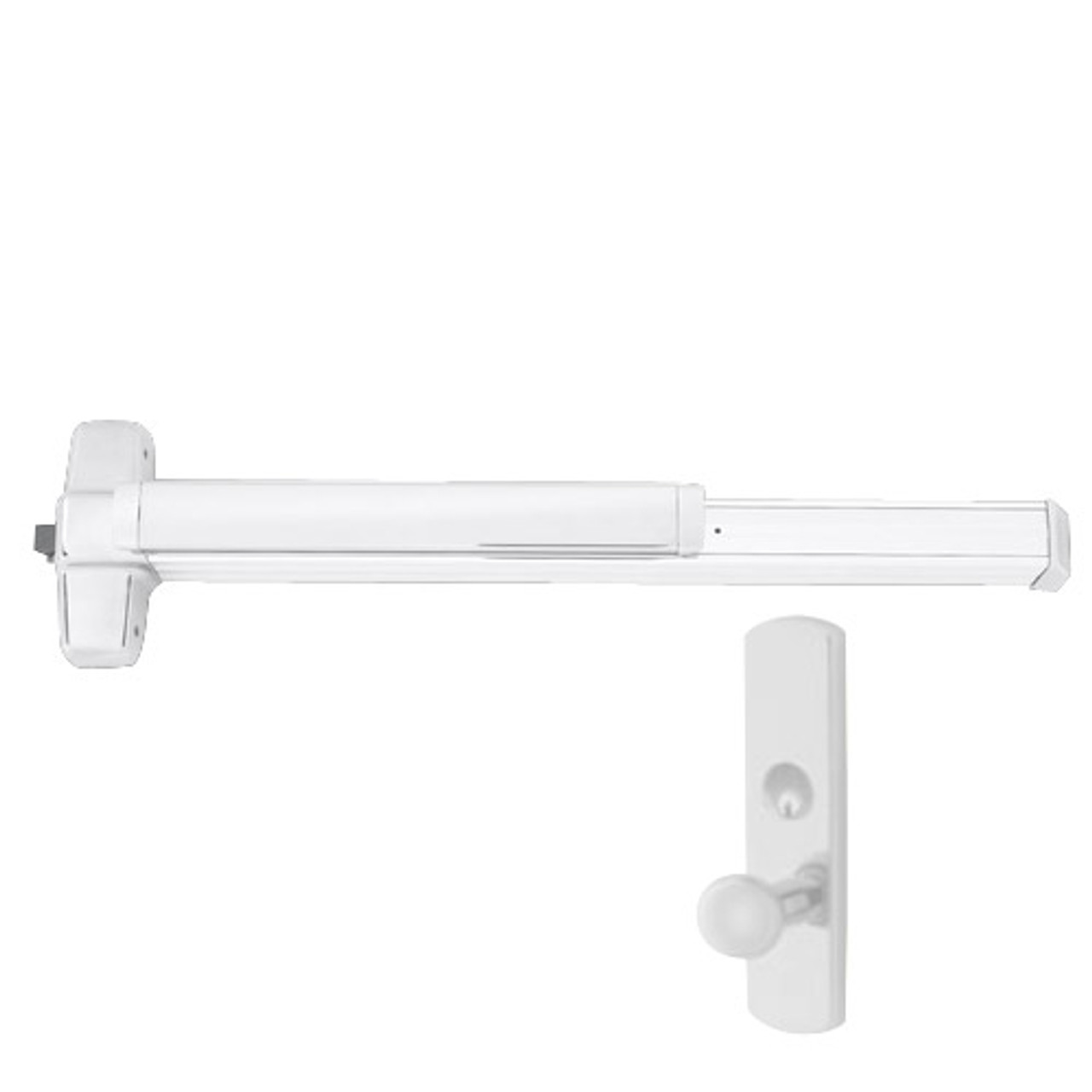

QEL-98K-US26-3 Von Duprin 98 Series with 996K Knob Rim Exit Device with Quiet Electric Latch Retraction in Bright Chrome Finish

The Von Duprin QEL-98K-US26-3 series of exit device for all types of single and double doors with mullion is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 98 rim exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abuse treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 98 series has a "smooth mechanism case"

Features and Benefits:

• Bright Chrome finish
• Knob Trim - Key locks and unlocks
• ANSI Function: 11 or 12 field selectable
• Cylinder and sex bolts are not included
• Quiet electric latch retraction - Bolt retraction via switch
• Device lengths: 3 feet (914mm) i.e 3' device for 2' 4" - 3' door (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 98 series exit devices are UL listed for panic exit hardware
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 299 strike dull black included for single door applications only
• Hex key dogging feature standard
• Includes 996K standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
• Cylinder must be ordered separately
• Device centerline from finished floor: 39-13/16" (1011mm) and 39-11/16" (1008mm) with mullion
