Product Description

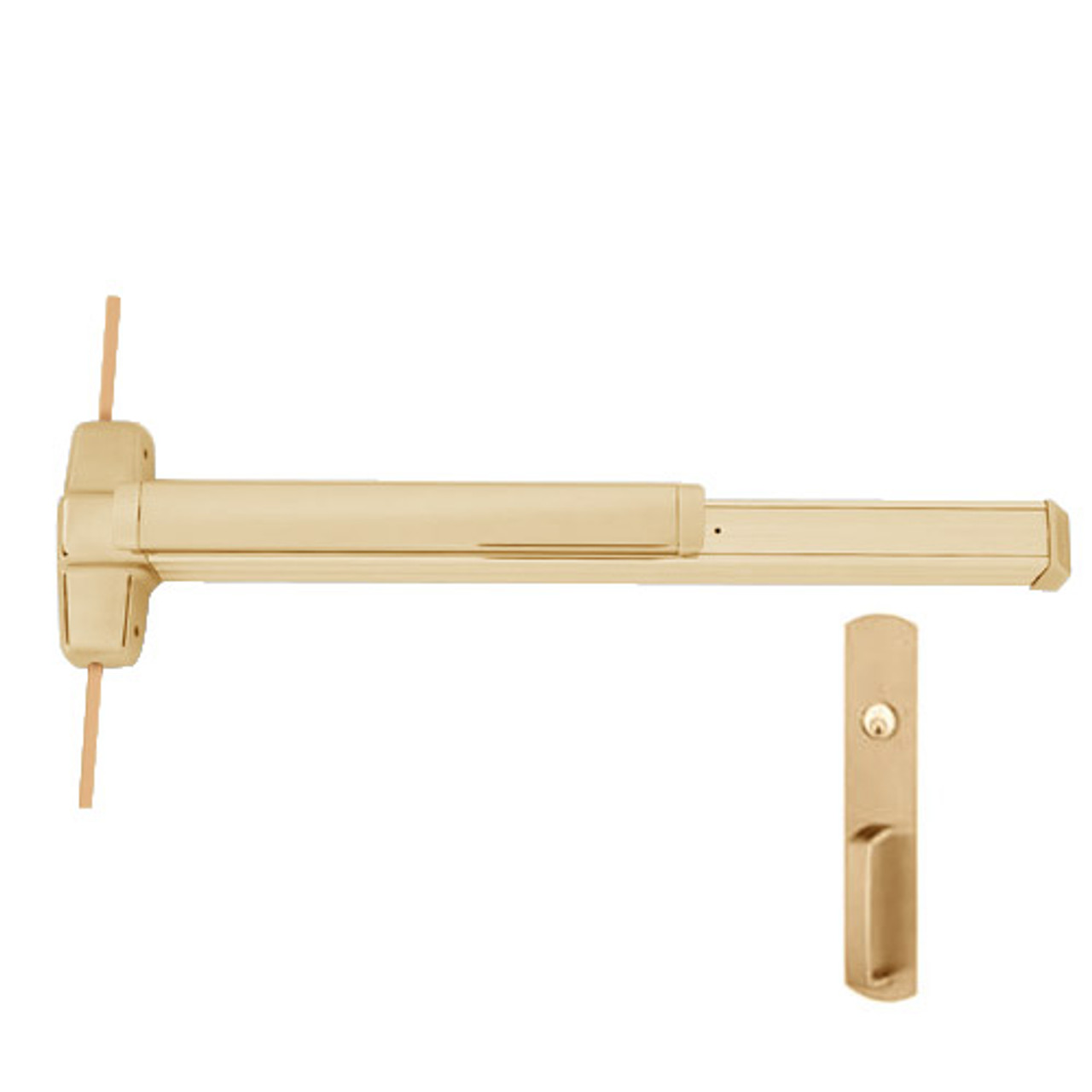

QEL9927NL-US10-4 Von Duprin 9927 Series with 990NL Night Latch Non Fire Rated Vertical Rod Exit Device with Quiet Electric Latch in Satin Bronze Finish

This device is for a 48" door

The Von Duprin QEL9927NL-US10-4 series of surface mounted vertical rod exit device for all types of single and double doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9927 vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9927 series has a "grooved mechanism case"

Features and Benefits:

• Satin Bronze Finish
• Night Latch Trim function - Key retracts latchbolt
• ANSI Function: 03
• Hex key dogging feature standard
• Quiet electric latch retraction - Bolt retraction via switch
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (864 mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors and 325 SNB for top and bottom latch
• Handed operation - Right Hand Reverse
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9927 series exit devices are UL listed for panic hardware
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
• Strike: 299 strike dull black and bottom - 248L-4 and 304L unfinished strikes included as always
• Included strikes and sex bolts for latches
• Includes 990NL standard trim ANSI/BHMA A156.3 (2008) Grade-1 certified
• Device centerline from finished floor: 39-5/8" (1006 mm)
