Product Description

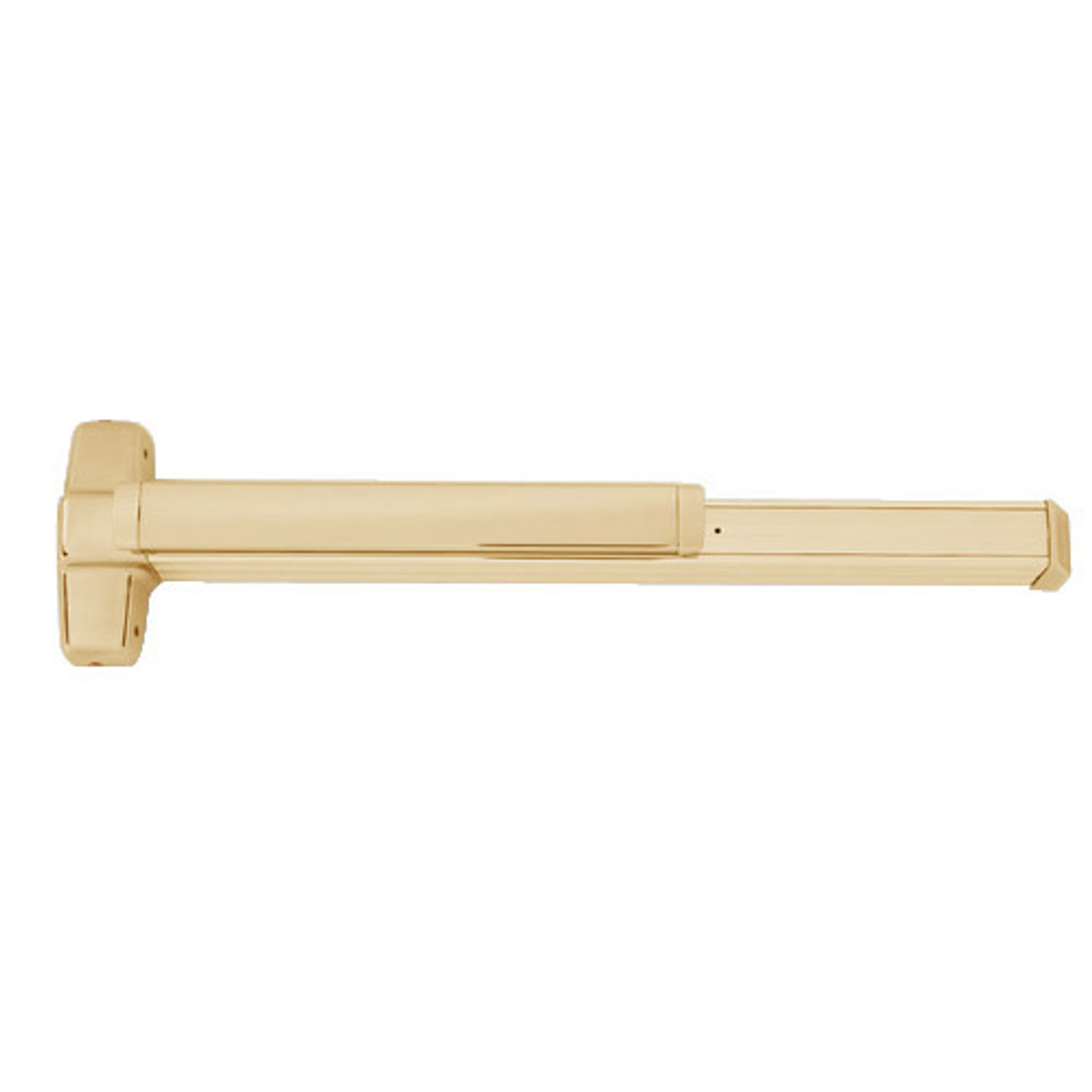

QEL9947EO-US10-4 Von Duprin 9947 Series Non Fire Rated Vertical Rod Exit Device with Quite Electric Latch in Satin Bronze Finish

This device is for a 48" door

The Von Duprin QEL9947EO-US10-4 series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9947 vertical rod exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 9947 series has a "grooved mechanism case"

Features and Benefits:

• Satin Bronze Finish
• ANSI Function: 01
• Cylinders and sex bolts are not included
• Quiet electric latch retraction - Bolt retraction via switch
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (864 mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 9947 series exit devices are UL listed for panic hardware and are certified to ANSI A156.3, 2008 Grade1
• Latch Bolt: Deadlocking top and bottom bolt, 5/8" (16mm) throw
• Strike: Top - 338 unfinished and Bottom - 385A unfinished strikes included as always
• Hex key dogging feature standard
• Device centerline from finished floor: 39-5/8" (1006 mm) standard and adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
