Product Description

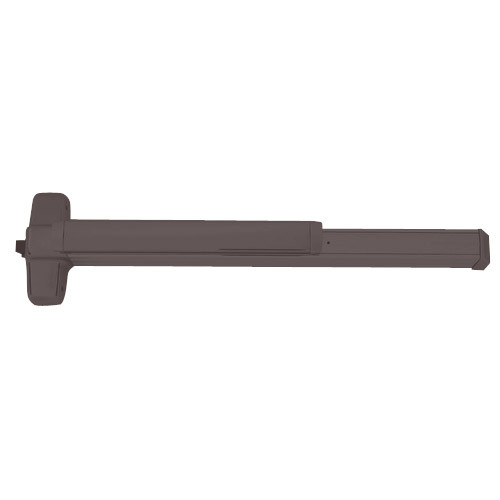

QEL99EO-313-4 Von Duprin 98 Series Rim Exit Device with Quiet Electric Latch Retraction in Duranodic Dark Bronze Finish

This device is for a 48" door

The Von Duprin QEL99EO-313-4 series of exit device for all types of single and double doors with mullion is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 99 rim exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for panic exit hardware. It is specifically designed for use in areas where frequent abuse treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.

The 99 series has a "grooved mechanism case"

Features and Benefits:

• Duranodic Dark Bronze finish
• ANSI Function: 01
• Cylinder and sex bolts are not included
• Quiet electric latch retraction - Bolt retraction via switch
• Device lengths: 4 feet (1219mm) i.e 4' device for 2' 10" - 4' door (864 mm to 1219 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors
• Non-handed operation provides greater flexibility
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• All 99 series exit devices are UL listed for panic exit hardware and are certified to ANSI A156.3, 2008 Grade1
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Strike: 299 strike dull black included for single door applications only
• Hex key dogging feature standard
• Requires 1 1/4" mortise cylinder with inverted cam
• Device centerline from finished floor: 39-13/16" (1011mm) and 39-11/16" (1008mm) with mullion
