Product Description

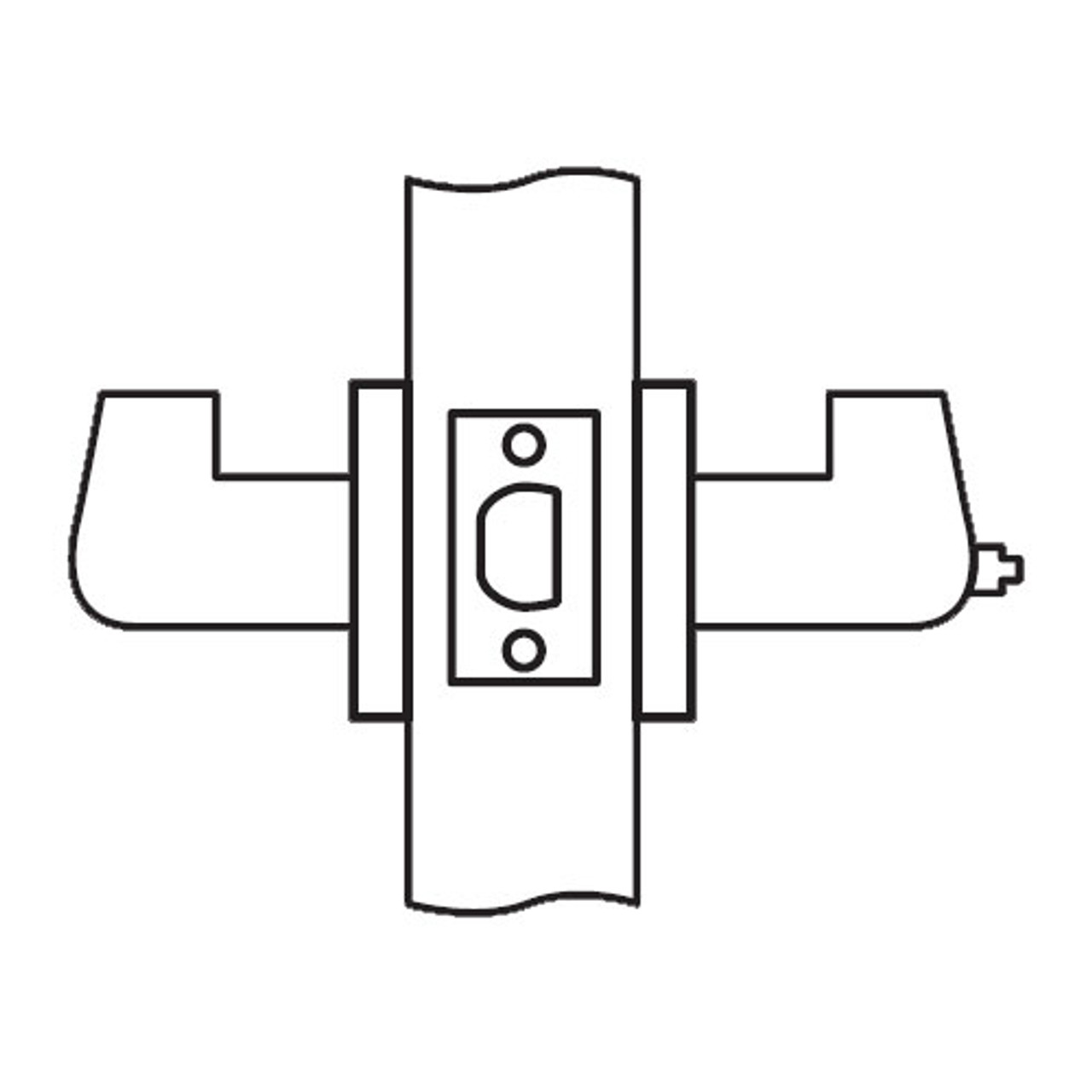

RL02-SR-03 Arrow Cylindrical Lock RL Series Privacy Lever with Sierra Trim Design in Bright Brass Finish

The Arrow RL02-SR-03 passage function lock is designed for light commercial applications. The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions and cylindrical locksets are an economical value for a variety of applications. The RL02-SR-03 is certified to BHMA A156.2, Series 4000, Grade 2, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case. These series are perfect for multi-family housing markets.

Privacy: Latchbolt operated by lever either side except when inside turnbutton locks outside. Unlocked by rotating button or by using tool outside.

Features and Benefits:

• Bright Brass finish
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch bolt: 1/2" throw, 1-1/8" front
• Backset: 2-3/4" or 2-3/8"
• Non-keyed
• ANSI: F76
• Sierra trim design
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
• Handing: Non-handed
• Non-keyed
