Product Description

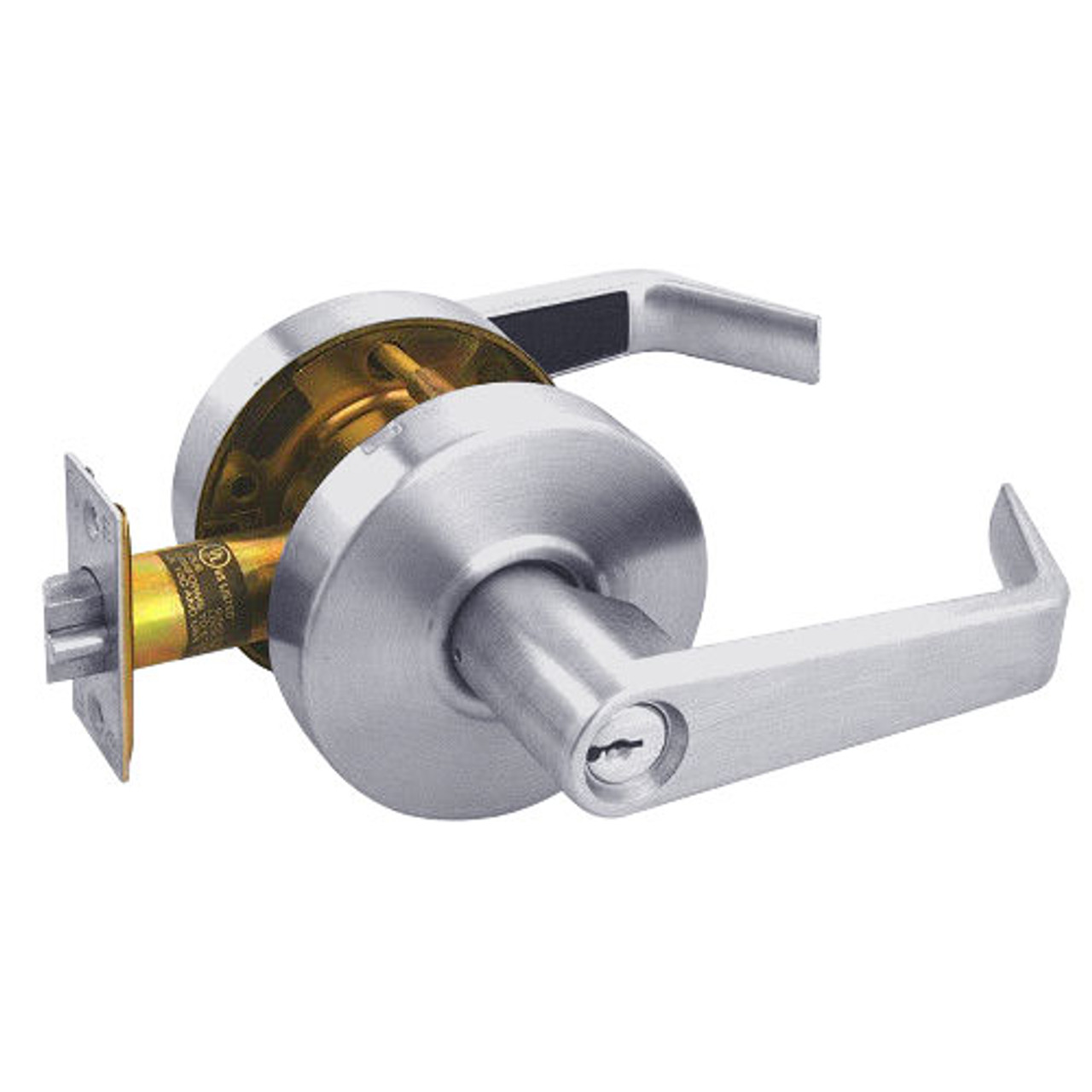

RL11-SR-26D Arrow Cylindrical Lock RL Series Entrance Lever with Sierra Trim Design in Satin Chrome Finish

The Arrow RL11-SR-26D passage function lock is designed for light commercial applications. The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions and cylindrical locksets are an economical value for a variety of applications. The RL11-SR-26D is certified to BHMA A156.2, Series 4000, Grade 2, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case. These series are perfect for multi-family housing markets.

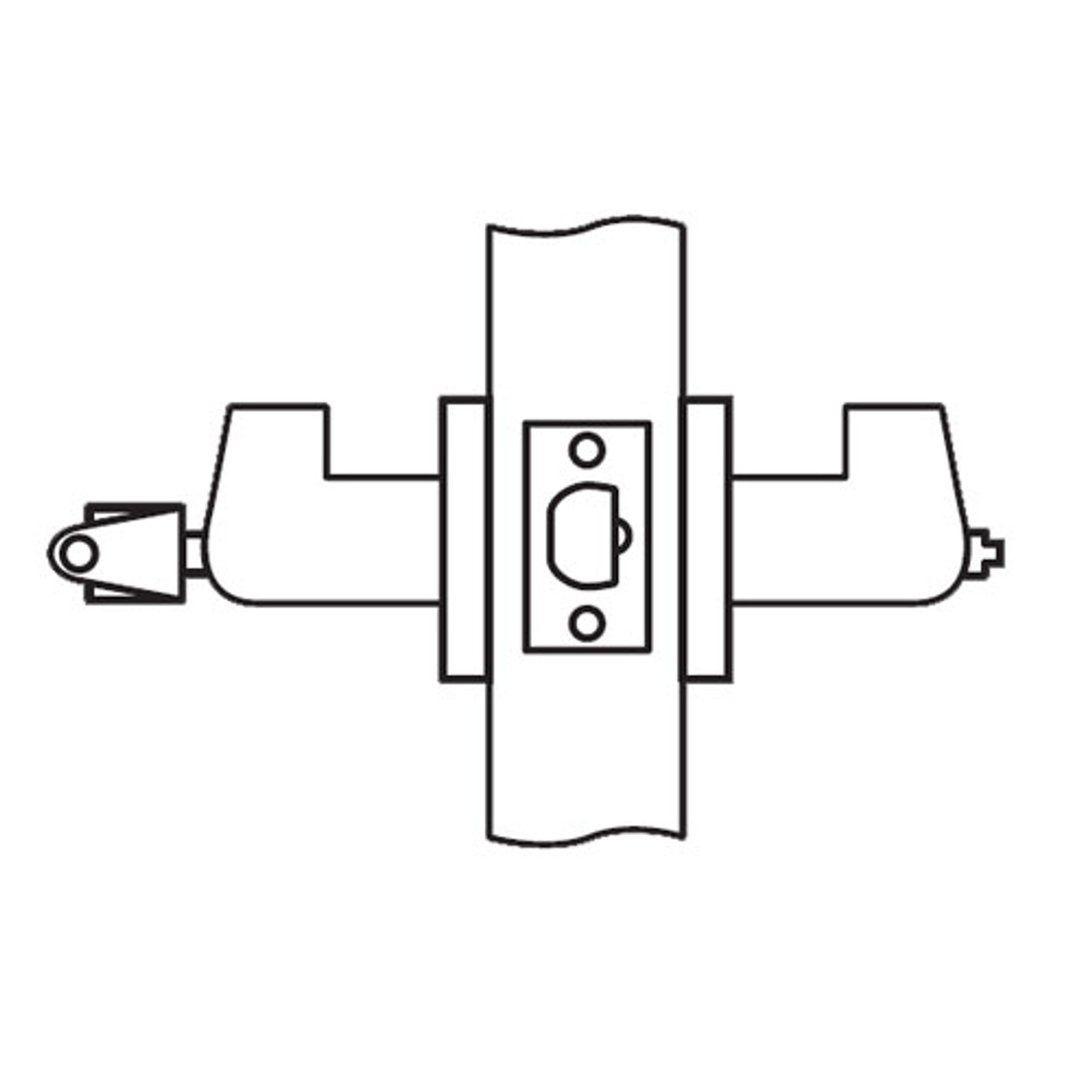

Entrance: Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.

Features and Benefits:

• Satin Chrome finish
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch bolt: 1/2" throw, 1-1/8" front
• Backset: 2-3/4" or 2-3/8"
• ANSI: F109
• Sierra trim design
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
• Handing: Non-handed
• Cylinder: 6-pin, solid brass, 2 brass keys standard
