Product Description

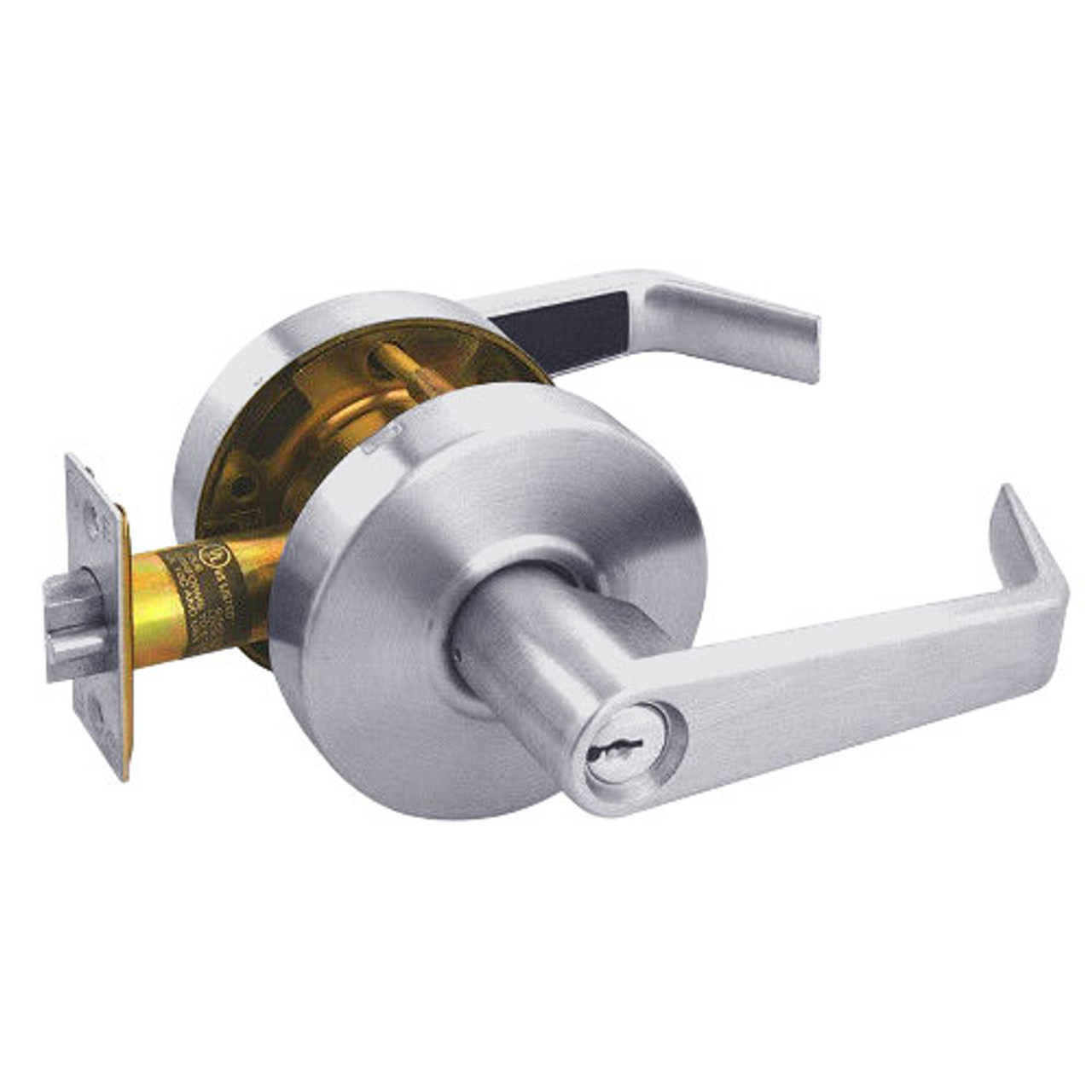

RL12-SR-26D Arrow Cylindrical Lock RL Series Storeroom Lever with Sierra Trim Design in Satin Chrome Finish

The Arrow RL12-SR-26D passage function lock is designed for light commercial applications. The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions and cylindrical locksets are an economical value for a variety of applications. The RL12-SR-26D is certified to BHMA A156.2, Series 4000, Grade 2, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case. These series are perfect for multi-family housing markets.

Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.

Features and Benefits:

• Satin Chrome finish
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch bolt: 1/2" throw, 1-1/8" front
• Backset: 2-3/4" or 2-3/8"
• ANSI: F86
• Sierra trim design
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
• Handing: Non-handed
• Cylinder: 6-pin, solid brass, 2 brass keys standard
