Product Description

RL17-BRR-26D Arrow Cylindrical Lock RL Series Classroom Lever with Broadway Trim Design in Satin Chrome Finish

The Arrow RL17-BRR-26D passage function lock is designed for light commercial applications. The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions and cylindrical locksets are an economical value for a variety of applications. The RL17-BRR-26D is certified to BHMA A156.2, Series 4000, Grade 2, and is UL Listed. These mortise lock series are easily reversible and enabling the user to reverse hands without disassembling lock case. These series are perfect for multi-family housing markets.

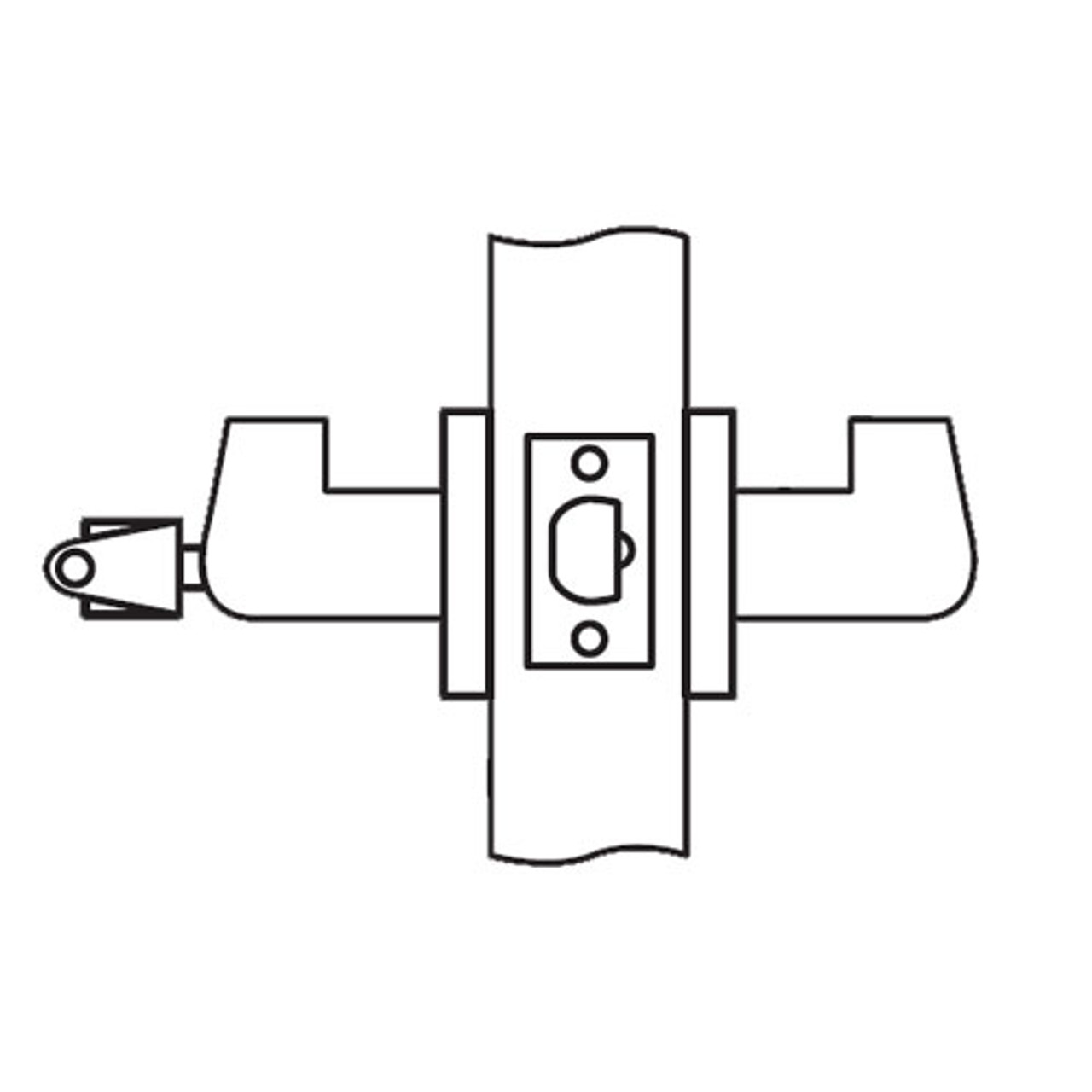

Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks outside lever only.

Features and Benefits:

• Satin Chrome finish
• Strike: ANSI 1-1/4" x 4-7/8"
• Latch bolt: 1/2" throw, 1-1/8" front
• Backset: 2-3/4" or 2-3/8"
• ANSI: F84
• Broadway trim design
• Door thickness: Fits 1-3/8" - 1-3/4", factory set for 1-3/4"
• Handing: Non-handed
• Cylinder: 6-pin, solid brass, 2 brass keys standard
