Product Description

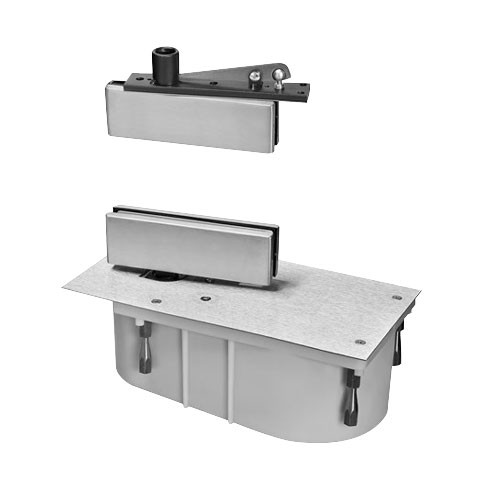

SC428-105S-RH-630 Rixson 428 Series Heavy Duty Single Acting Center Hung Floor Closer with Patch Fittings in Satin Stainless Steel Finish
The Rixson SC428-105S-RH-630 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. The weight of the door is supported by the bottom arm and floor. This is ideal for single acting exterior or interior doors. These 428 Series heavy-duty floor closers are certified to ANSI/BHMA A156.4 standards.
Features and Benefits:
- Satin Stainless Steel finish
- Mounting Style: Offset
- Frame stop required at header on lock side
- Handing: Right handed, Single acting
- Selective hold open
- Built-in positive dead stop prevents door from swinging 105 degree
- Weight to 325 lbs.
- Sealing a closer protects it from moisture
- Cement case and closer body are gasketed and fastened together.
- Door Width up to 3'2" x 8'0"
- Cycolac, rustproof cement case
- Standard top pivot: 7494*PK included
- Heavy duty center hung concealed floor closers
- Top and bottom patch fittings for tempered glass doors 3/8" - 1/2" thick
- Non fire rated
