Product Description

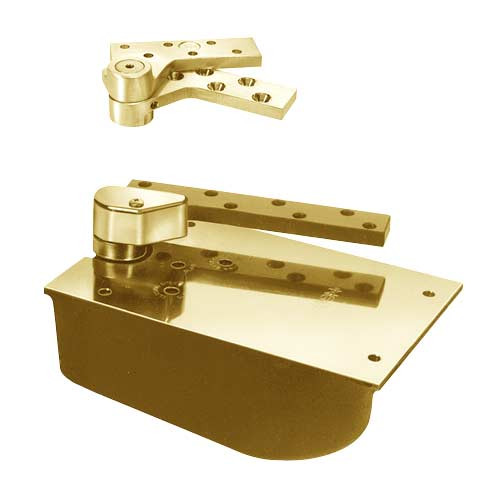

SCL27-85N-LH-605 Rixson 27 Series Extra Heavy Duty Lead Lined Offset Floor Closer in Bright Brass Finish

The Rixson SCL27-85N-LH-605 provides the best mechanical means to support and control a door. It is designed to work with physics rules to provide long-term performance and reliability. The weight of the door is supported by the bottom arm and floor. This is ideal for single acting exterior or interior doors. These 27 series heavy-duty floor closers are certified to ANSI/BHMA A156.4 standards.

Features and Benefits:

• Bright Brass finish
• Mounting Style: 3/4" Offset
• Handing: Left handed, Single acting
• Non hold-open
• Built-in positive dead stop prevents door from swinging 85 degree
• Weight to 1500 lbs.
• Sealing a closer protects it from moisture
• Cement case and closer body are gasketed and fastened together.
• Door Width up to 4'0" (1219mm)
• Cast iron cement case
• Top pivot is not included
• Extra heavy duty offset hung floor closers
• Non fire rated

Note: Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Note: Closer must be ordered with cement case
