Product Description

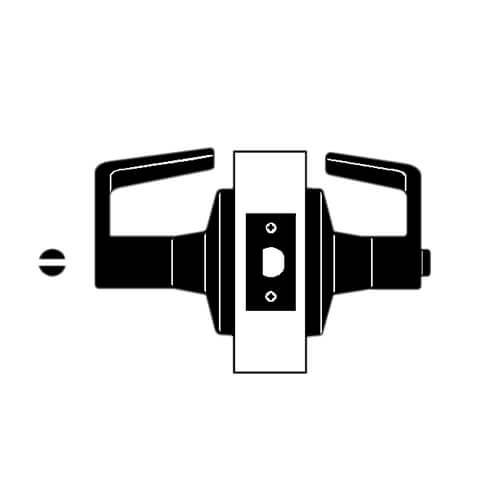

T301S-D-606 Falcon T Series Cylindrical Privacy Lock with Dane Lever Style in Satin Brass Finish

The Falcon T301S-D-606 Extra heavy duty cylindrical lock is used for offices, schools, hospitals, apartments, hotels, motels and other public building applications. The Falcon T series lock is the most versatile lockset and accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying. This versatile lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military. This T series locks are certified to ANSI/BHMA A156.2, Series 4000,Grade 1, UL Listed for 3-hour fire door.

Privacy lock - Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door.

Features and Benefits:

• Satin Brass finish
• Door range: 1-3/4" - 2-1/8" standard
• Handing: Non-handed
• Non-keyed
• ANSI: F76-1
• D (Dane) lever trim
• Backset: 2-3/4" backset standard
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 4-7?8" x 1-1?4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard
