Product Description

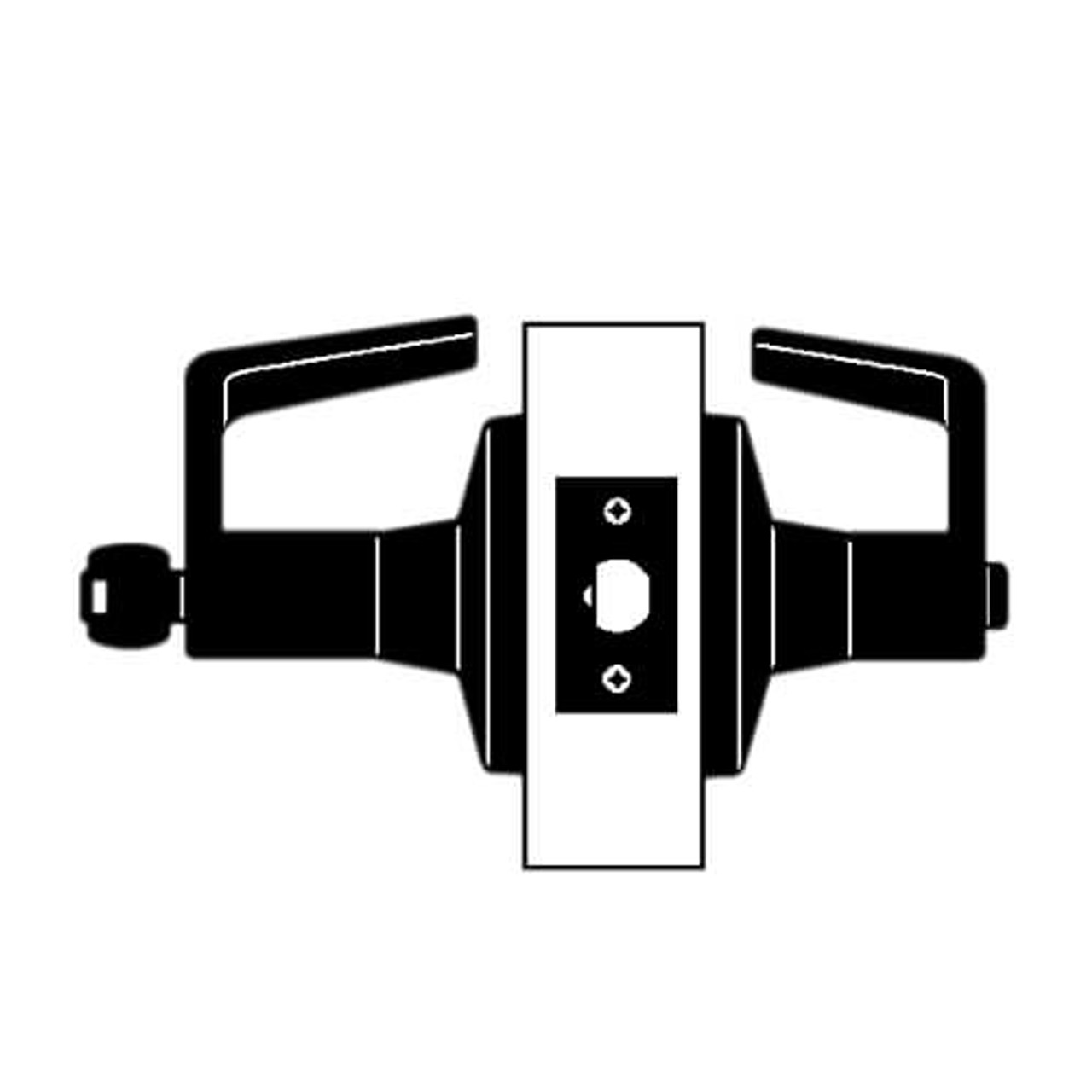

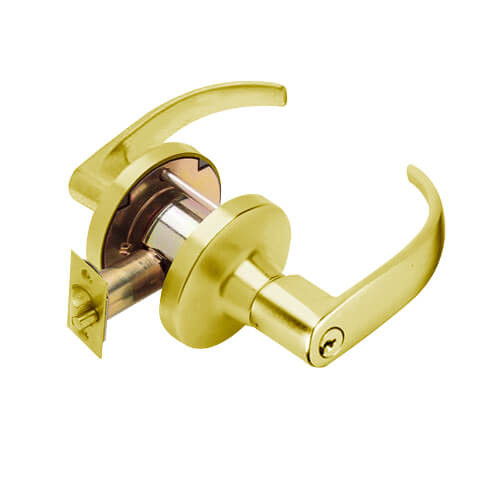

T501PD-Q-605 Falcon T Series Cylindrical Entry Lock with Quantum Lever Style in Bright Brass Finish
The Falcon T501PD-Q-605 Extra heavy duty cylindrical lock is used for offices, schools, hospitals, apartments, hotels, motels and other public building applications. The Falcon T series lock is the most versatile lockset and accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying. This versatile lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military. This T series locks are certified to ANSI/BHMA A156.2, Series 4000,Grade 1, UL Listed for 3-hour fire door.
Entry lock - Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.
Features and Benefits:
- Bright Brass finish
- Door range: 1-3/4" - 2-1/8" standard
- Handing: Non-handed
- Single cylinder
- ANSI: F82-1
- Standard keys are included
- Q (Quantum) lever trim
- Keyway: G keyway standard
- Backset: 2-3/4" backset standard
- Cylinders: 5 pinned cylinder
- Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 4-7?8" x 1-1?4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard
