Product Description

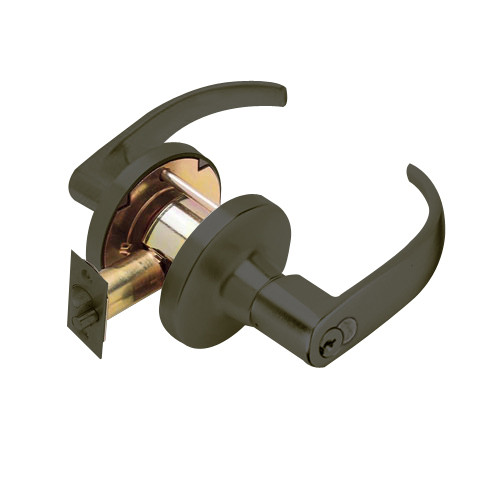

T511GD-Q-613 Falcon T Series Cylindrical Entry/Office Lock with Quantum Lever Style Prepped for SFIC in Oil Rubbed Bronze Finish

The Falcon T511GD-Q-613 Extra heavy duty cylindrical lock is used for offices, schools, hospitals, apartments, hotels, motels and other public building applications. The Falcon T series lock is the most versatile lockset and accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying. This versatile lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military. This T series locks are certified to ANSI/BHMA A156.2, Series 4000,Grade 1, UL Listed for 3-hour fire door.

Entry/office lock - Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

Features and Benefits:

• Oil Rubbed Bronze finish
• Door range: 1-3/4" - 2-1/8" standard
• Handing: Non-handed
• Single cylinder
• ANSI: F109-1
• Core is included
• A keyway standard
• Q (Quantum) lever trim
• Backset: 2-3/4" backset standard
• Prepped for falcon small format interchangeable core
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 4-7?8" x 1-1?4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard
