Product Description

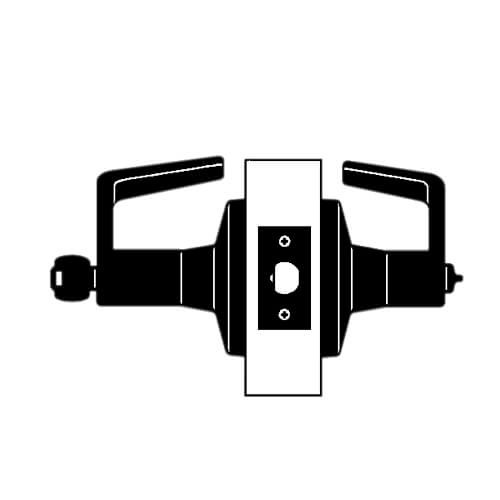

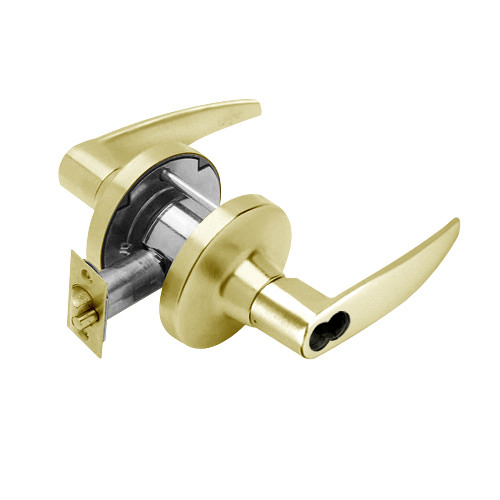

T521BD-A-606 Falcon T Series Cylindrical Office Lock with Avalon Lever Style Prepped for SFIC in Satin Brass Finish

The Falcon T521BD-A-606 Extra heavy duty cylindrical lock is used for offices, schools, hospitals, apartments, hotels, motels and other public building applications. The Falcon T series lock is the most versatile lockset and accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying. This versatile lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military. This T series locks are certified to ANSI/BHMA A156.2, Series 4000,Grade 1, UL Listed for 3-hour fire door.

Office lock - Turn button locking. Turning button locks outside lever requiring use of key until button is manually unlocked. Inside lever always free. Deadlocking latch bolt.

Features and Benefits:

• Satin Brass finish
• Door range: 1-3/4" - 2-1/8" standard
• Handing: Non-handed
• Single cylinder
• ANSI: F81-1
• Core is not included
• A (Avalon) lever trim
• No keys or core is included with this lock, must be purchased separately
• Backset: 2-3/4" backset standard
• Prepped for small format interchangeable core, not included
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 4-7?8" x 1-1?4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard
