Product Description

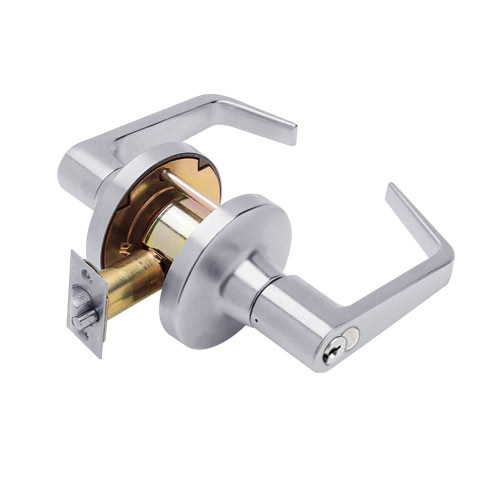

T571GD-D-626 Falcon T Series Cylindrical Dormitory/Corridor Lock with Dane Lever Style Prepped for SFIC in Satin Chrome Finish

The Falcon T571GD-D-626 Extra heavy duty cylindrical lock is used for offices, schools, hospitals, apartments, hotels, motels and other public building applications. The Falcon T series lock is the most versatile lockset and accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying. This versatile lock is well suited to either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military. This T series locks are certified to ANSI/BHMA A156.2, Series 4000,Grade 1, UL Listed for 3-hour fire door.

Dormitory lock - Deadlocking latch bolt by levers except when locked by push button in inside lever. Key in outside lever locks or unlocks outside lever and releases button. Closing door releases push button. Inside lever always free.

Features and Benefits:

• Satin Chrome finish
• Door range: 1-3/4" - 2-1/8" standard
• Handing: Non-handed
• Single cylinder
• ANSI: F90-1
• Core is included
• A keyway standard
• D (Dane) lever trim
• Backset: 2-3/4" backset standard
• Prepped for falcon small format interchangeable core
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 4-7?8" x 1-1?4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard
