Product Description

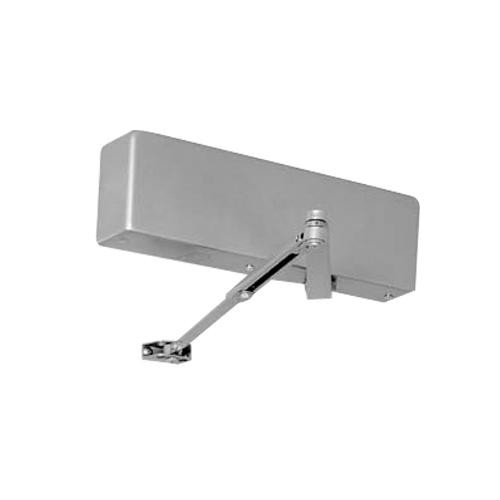

TJL4410-689 Yale 4400 Series Institutional Door Closer with Top Jamb Only Reveals 2-3/4" to 7" in Aluminum Painted Finish

The Yale TJL4410-689 institutional door closers are the ideal combination of superior performance, quality and strength. With new pinion and piston materials, improved valve design, and staked valves, the closers are the most efficient, dependable closers in the industry. The 4400 series is an ideal choice for interior or exterior doors in facilities that demand reliability such as schools, office buildings, hospitals, department stores and airports. This series are certified to ANSI/BHMA A156.4, Grade 1.

Features and Benefits:

• Aluminum Painted finish
• Exceeds 25 million cycles
• Handing: Non-handed
• Hold open
• Manufactured in an ISO 9001 facility
• Cast aluminum body
• Staked valves
• Rack and pinion design
• Top jamb only reveals 2-3/4" to 7" (to 180°)
• Molded plastic cover standard
• Self-drilling screws
• 2-1/8" (54mm) projection (standard covers)
• 5/8" (16mm) diameter pinion journals
• 1-1/2" (38mm) diameter piston
• Adjustable spring sizes 1 through 6 (ADA Compliant)
