Product Description

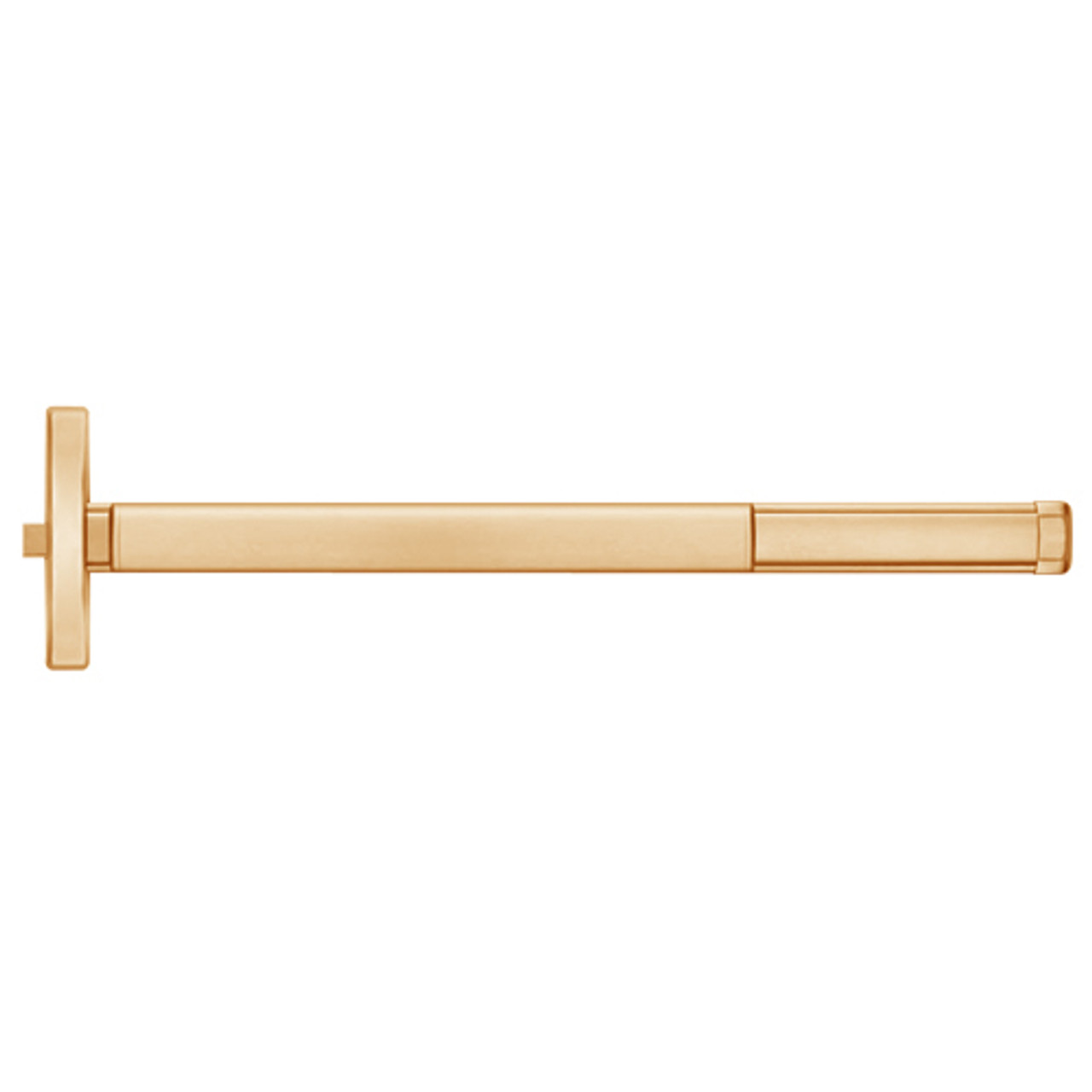

TS2414-612-36 PHI 2400 Series Non Fire Rated Apex Rim Exit Device with Touchbar Monitoring Switch Prepped for Lever Always Active in Satin Bronze Finish
This device is for a 36" door
The PHI TS2414-612-36 Apex 2000 series exit device is used for all types of single and double doors with a mullion and represents the ultimate in safety, security and simplicity. The APEX 2000 series provides smoother operation with minimal need for maintenance and durable construction allows it to withstand high traffic and high use on a regular basis, making it particularly attractive for healthcare and education buildings. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. The Apex 2400 Series exit devices are UL listed for panic hardware and is certified to ANSI A156.3 Grade 1.
Features and Benefits:
- Satin Bronze finish
- Handing: Non handed
- UL listed
- Non fire rated
- Touchbar monitoring switch is included
- Door Size: 36" - 2'-7" to 3' door width
- Cylinder and trim is not included
- Prepped for lever always active
- Latchbolt: Stainless steel, deadlocking, 3/4" throw.
- Strike: S988 srike is included
- Dogging: 1/4" turn hex key dogging standard
- Used for the narrow stile door
- Touchbar height: 39-15/16"- from floor standard
