Product Description

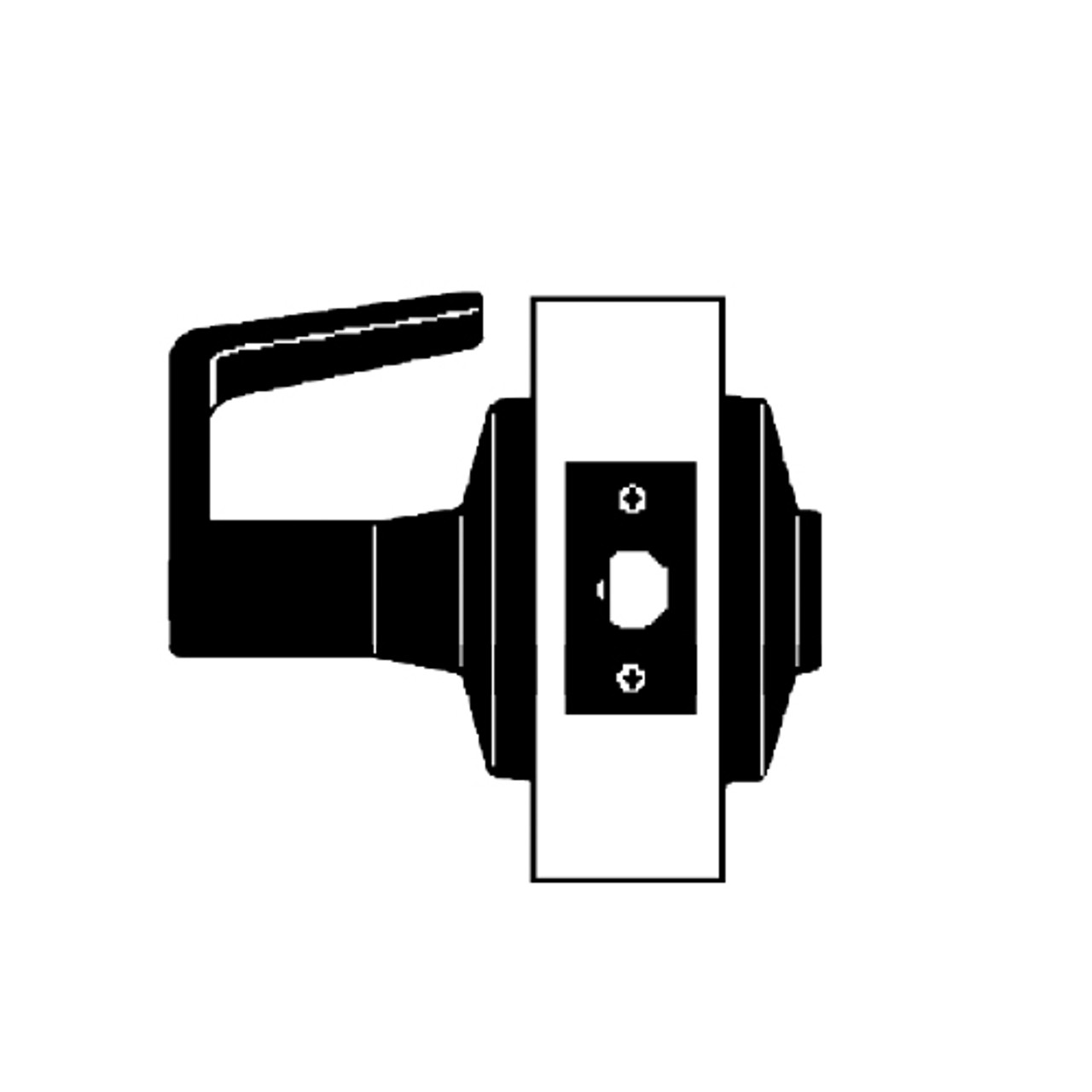

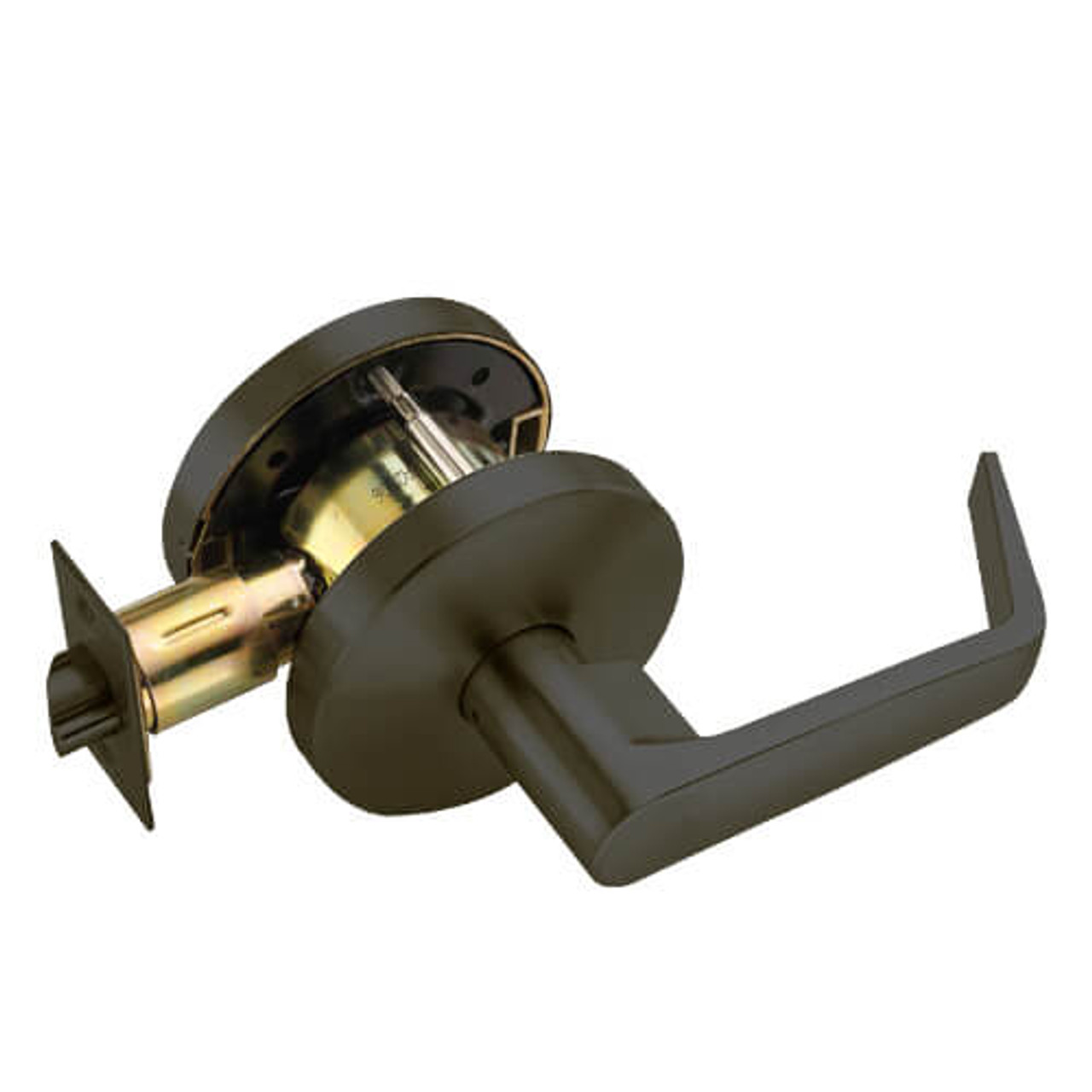

W161D-D-613 Falcon W Series Cylindrical Communicating/Exit Lock with Dane Lever Style in Oil Rubbed Bronze Finish

The Falcon W161D-D-613 medium duty cylindrical lock is designed for the government/military, retail, industrial or multi-family and the W series lock fits perfectly. The Falcon W Series cylindrical lock provides best quality products at value prices. The W series are certified to ANSI/BHMA A156.2, Series 4000, Grade 2, UL Listed for the 3-Hour fire door.

Communicating/exit latch - Deadlocking latch bolt by inside lever. Non-removable blank plate outside. Inside lever is always free.

Features and Benefits:

• Oil Rubbed Bronze finish
• W Series standard rose
• Rose: 3-3/8" standard
• Door range: 1-3/8" - 1-3/4" standard
• Handing: Non handed
• Non keyed
• D (Dane)lever trim
• Backset: 2-3/4" backset standard
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
