Product Description

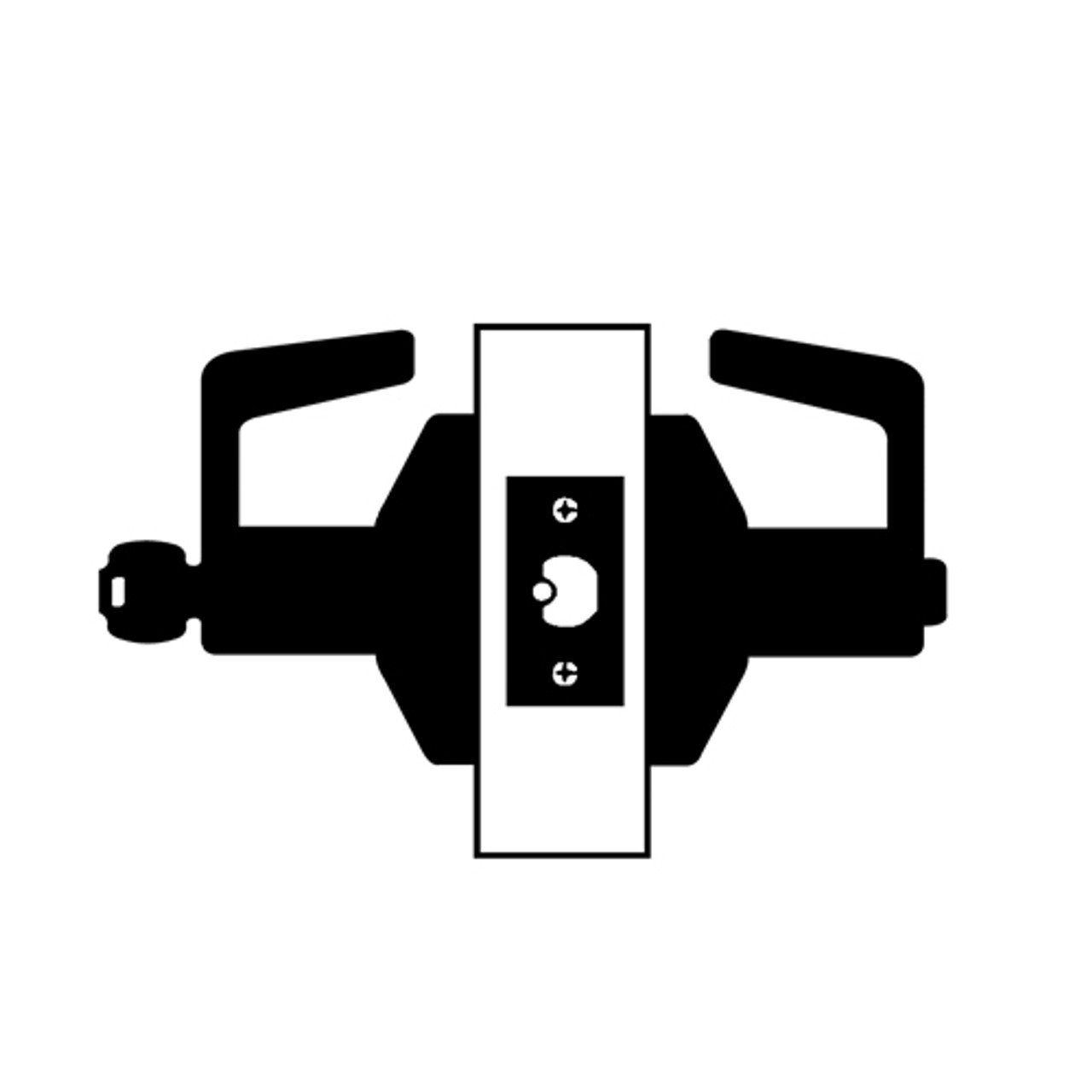

W501PD-Q-619 Falcon W Series Cylindrical Entry Lock with Quantum Lever Style in Satin Nickel Finish

The Falcon W501PD-Q-619 medium duty cylindrical lock is designed for the government/military, retail, industrial or multi-family and the W series lock fits perfectly. The Falcon W Series cylindrical lock provides best quality products at value prices. The W series are certified to ANSI/BHMA A156.2, Series 4000, Grade 2, UL Listed for the 3-Hour fire door.

Entry lock - Push button locking. Button on inside locks outside lever until unlocked by key or by rotating inside lever. Closing door release push button and unlocks door. Inside lever always free. Deadlock latchbolt.

Features and Benefits:

• Satin Nickel finish
• W Series standard rose
• Key-In-Lever 3-3/8" rose
• Door range: 1-3/8" - 1-3/4" standard
• Handing: Non handed
• Single cylinder
• ANSI: F82
• Standard keys are included
• Q (Quantum) lever trim
• Cylinder: 5 pinned cylinder standard
• Backset: 2-3/4" backset standard
• G keyway standard
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
