Product Description

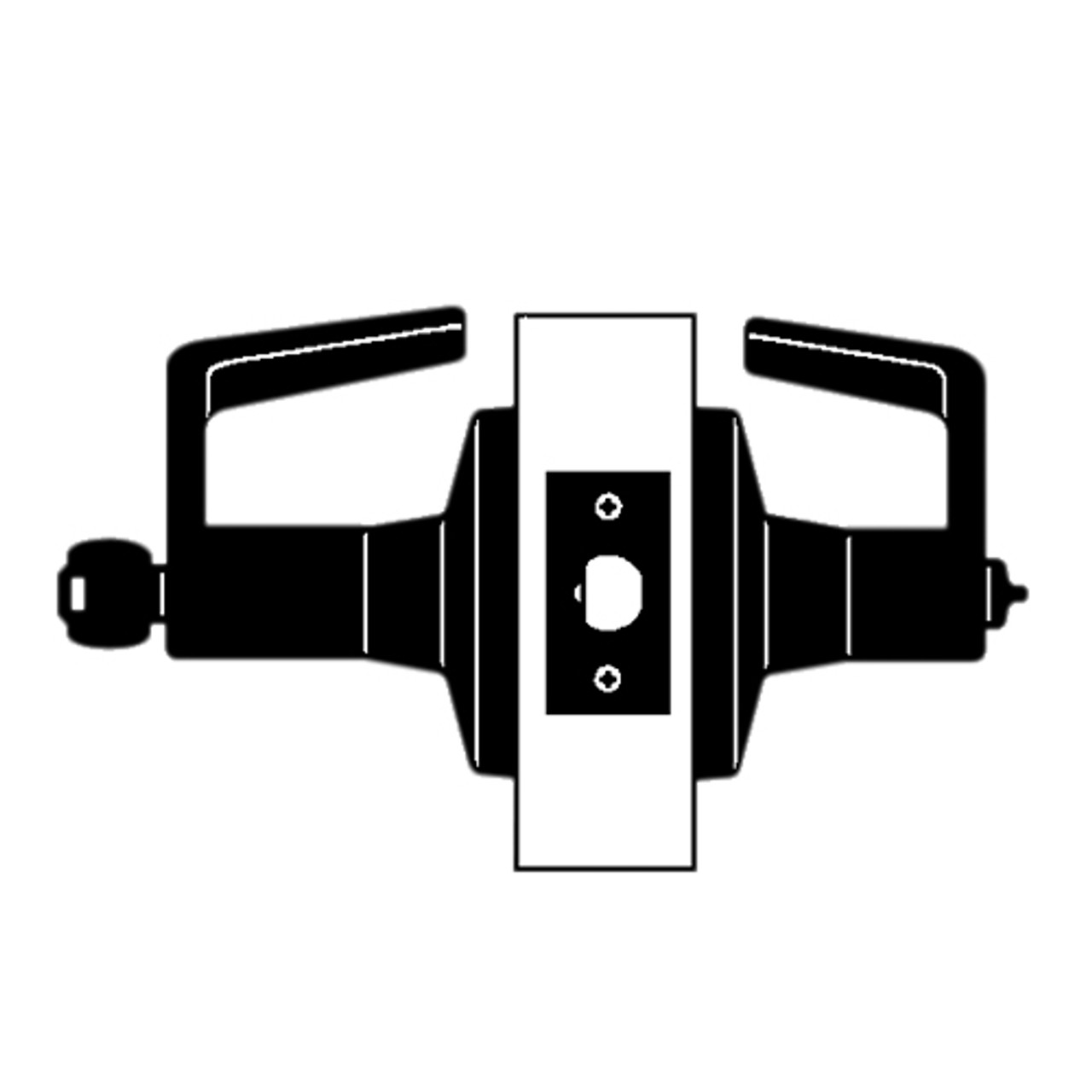

W511GD-Q-622 Falcon W Series Cylindrical Entry/Office Lock with Quantum Lever Style in Matte Black Finish

The Falcon W511GD-Q-622 medium duty cylindrical lock is designed for the government/military, retail, industrial or multi-family and the W series lock fits perfectly. The Falcon W Series cylindrical lock provides best quality products at value prices. The W series are certified to ANSI/BHMA A156.2, Series 4000, Grade 2, UL Listed for the 3-Hour fire door.

Entry/office lock - Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.

Features and Benefits:

• Matte Black finish
• W Series standard rose
• Key-In-Lever 3-3/8" rose
• Door range: 1-3/8" - 1-3/4" standard
• Handing: Non handed
• Single cylinder
• ANSI: F109
• Core is included
• Keyway: A keyway
• Keys are included
• Q (Quantum) lever trim
• Prepped for falcon small format interchangeable core
• Backset: 2-3/4" backset standard
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
