Product Description

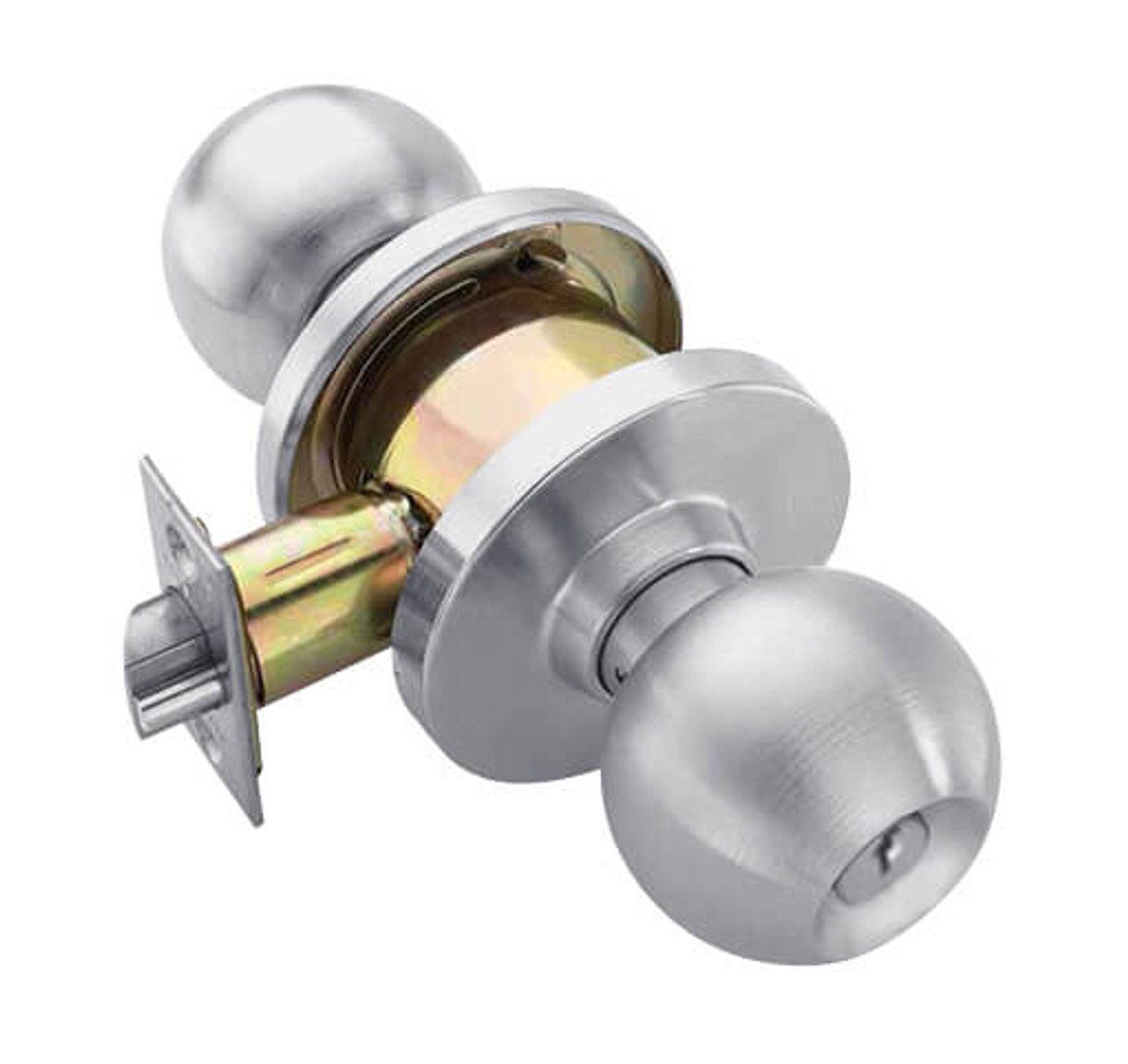

W571PD-H-626 Falcon W Series Cylindrical Corridor Lock with Hana Knob Style in Satin Chrome Finish

The Falcon W571PD-H-626 medium duty cylindrical lock is designed for the government/military, retail, industrial or multi-family and the W series lock fits perfectly. The Falcon W Series cylindrical lock provides best quality products at value prices. The W series are certified to ANSI/BHMA A156.2, Series 4000, Grade 2, UL Listed for the 3-Hour fire door. Knobs are constructed of brass or cold-formed steel and are zinc-plated and dichromated for rust resistance.

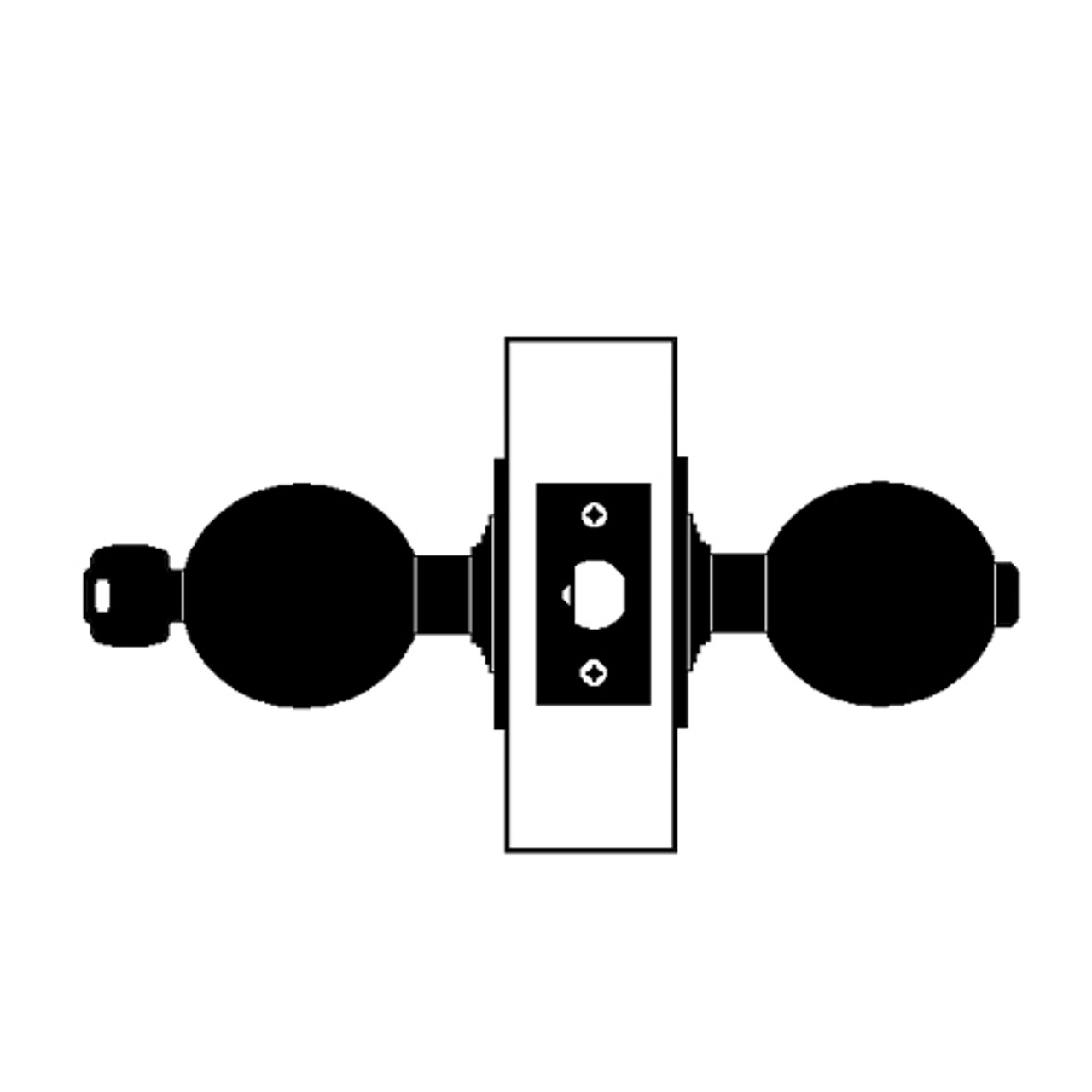

Corridor lock - Deadlocking latch bolt by knob except when locked by the push button in inside knob. Key in outside knob locks or unlocks outside knob and releases button. Closing the door releases push button. Inside knob always free.

Features and Benefits:

• Satin Chrome finish
• Door range: 1-3/8" - 1-3/4" standard
• Handing: Non handed
• Single cylinder
• Standard keys are included
• Hana (HAN) knob trim
• Cylinder: 5 pinned cylinder standard
• Backset: 2-3/4" backset standard
• G keyway standard
• Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
• Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
