Product Description

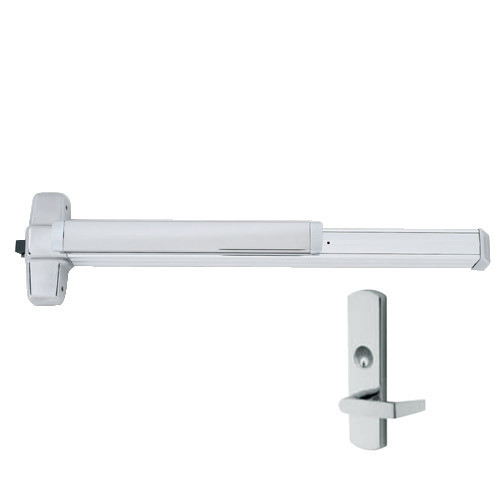

XP98L-US28-3-RHR Von Duprin XP98 Series with 996L Lever Non Fire Rated Rim Exit Device in Anodized Aluminum Finish

This device is for a 36" door

The Von Duprin XP98L-US28-3-RHR series of exit device for all types of single and double doors with mullion is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The XP98 push pad rim exit device is the economical alternative, incorporating a modern touchbar styling. Touch bar exit devices are mounted on the egress side of the door. A fluid dampener decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. A new retrofit kit allows conversion of existing 98 devices into the new XP98 function and thus making higher security an affordable function.

The XP98 series has a "smooth mechanism case"

Features and Benefits:

• Anodized Aluminum finish
• ANSI Function: 08
• Handing: Right handed
• Includes 996L standard trim
• Lever trim function - key retracts latchbolt
• Hex key dogging feature standard
• Cylinders and sex bolts are not included
• Device lengths: 3 feet (914 mm) i.e 3' device for 2'4' to 3' (711mm to 914 mm) door size
• Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) wood and metal doors
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• Strike: 909 strike included as always
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• New latchbolt design provides the industry's highest lever of latching security
• Device centerline from finished floor: 39-13/16" (1011 mm) and 39-11/16" (1008 mm) with mullion
