Product Description

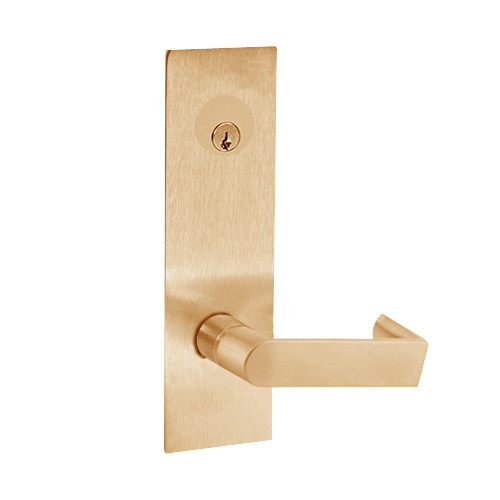

Z7832LGEE SDC Z7800 Selectric Pro Series Locked Both Sides Failsecure Electric Mortise Lock with Eclipse Lever in Satin Bronze Finish
The SDC Z7832LGEE electric locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required. Selectric locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high rise stairwell and elevator lobby doors where the use of electric strikes and magnetic locks is prohibited. The Z7800 series locksets retrofit many other mechanical lock brands making them fully compatible with new and retrofit applications. The Z7800 series is certified to the ANSI A156.13 compliant, Grade 1.
Features and Benefits:
- Satin Bronze finish
- Handing: Left handed
- Dual Voltage: 600/300 mA @ 12/24VDC
- Backset: 2-3/4"
- Strike: 4-7/8" (Standard)
- Door thickness: 1-3/4" Standard
- Locked both sides, failsecure. Field reversible to failsafe mode.
- Latch bolt: 3/4" Anti-friction bolt with auxiliary deadlatch
- Trim: Eclipse with escutcheon SDC trim
- Cylinder Type: Conventional cylinder
- Switch Type: None
