Product Description

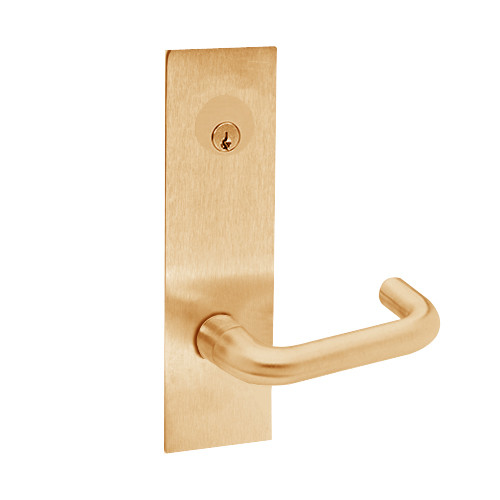

Z7850LRGNE SDC Z7800 Selectric Pro Series Locked Outside Sides Failsafe Electric Mortise Lock with Nova Lever in Satin Bronze Finish
The SDC Z7850LRGNE electric locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required. Selectric locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high rise stairwell and elevator lobby doors where the use of electric strikes and magnetic locks is prohibited. The Z7800 series locksets retrofit many other mechanical lock brands making them fully compatible with new and retrofit applications. The Z7800 series is certified to the ANSI A156.13 compliant, Grade 1.
Features and Benefits:
- Satin Bronze finish
- Handing: Left hand reversed
- Dual Voltage: 600/300 mA @ 12/24VDC
- Backset: 2-3/4"
- Strike: 4-7/8" (Standard)
- Door thickness: 1-3/4" Standard
- Locked outside sides, failsafe. Field reversible to failsecure mode.
- Latch bolt: 3/4" Anti-friction bolt with auxiliary deadlatch
- Trim: Nova with escutcheon SDC trim
- Cylinder Type: Conventional cylinder
- Switch Type: None
